Coronary

ASAHI Conquest Pro / Confianza Pro series

High penetrability and straightness

0.009” Tapered Tip

High Tip Load

Uncoated Tip & Hydrophilic Coating

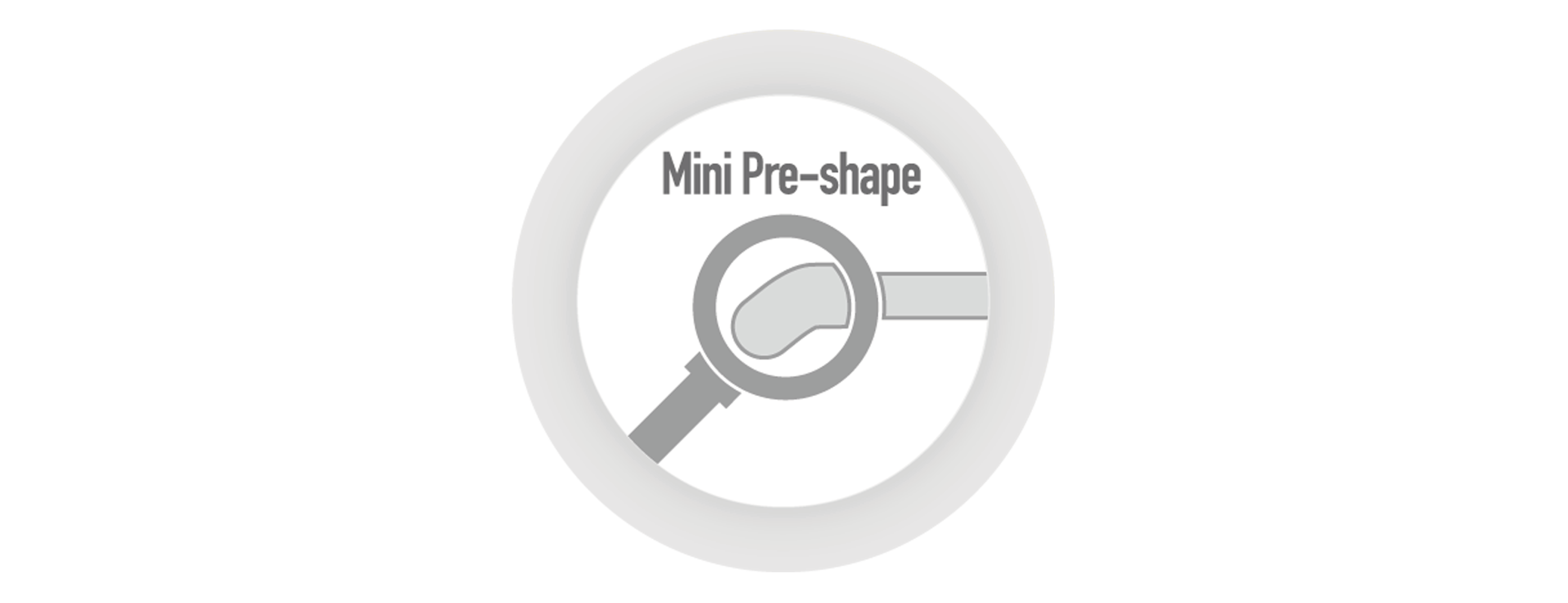

1mm 45° Pre-shape

*The tip load values of our guide wires are the values assuming the force that the tip of the guide wire pushes the lesion on the basis of company standardized test. There are individual differences in values of actual devices.

Product Spec

Tip Load 9gf / 12gf
Tip Shape Straight / Pre-shape
Radiopaque Length 20cm

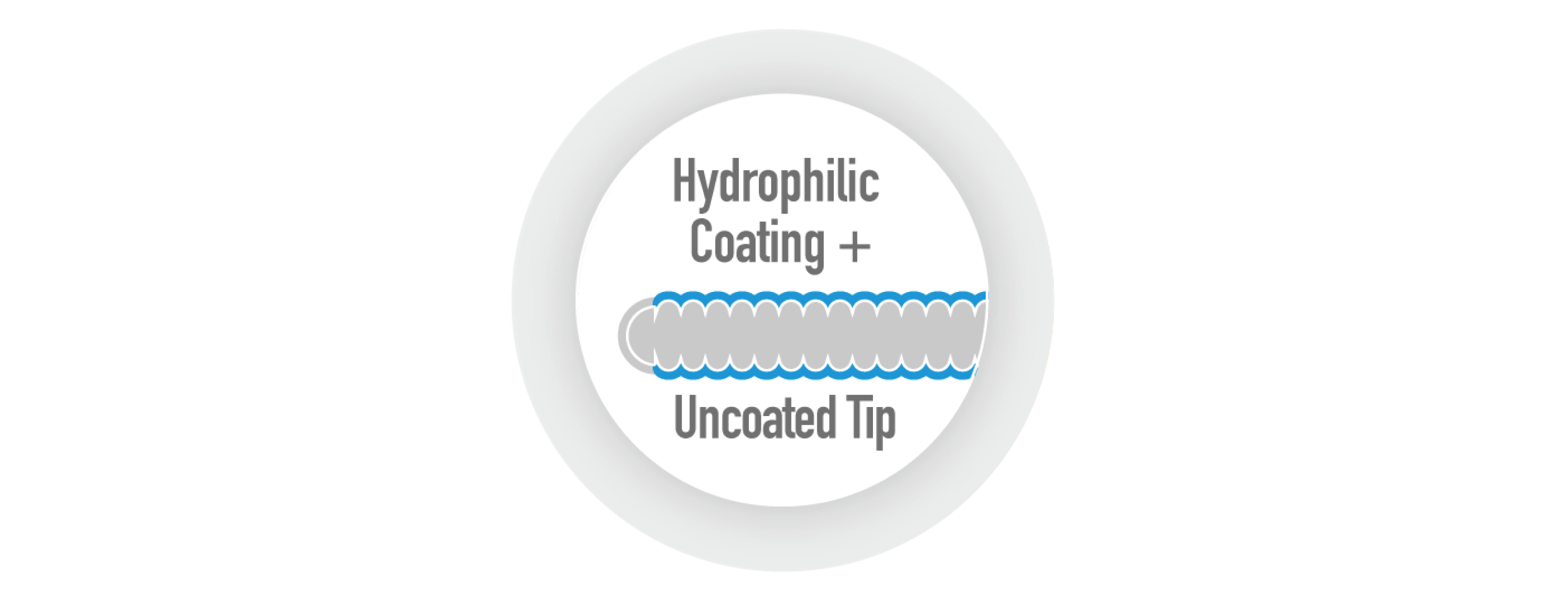

Coating Uncoated Tip & Hydrophilic Coating
Usable Length 190cm / 300cm

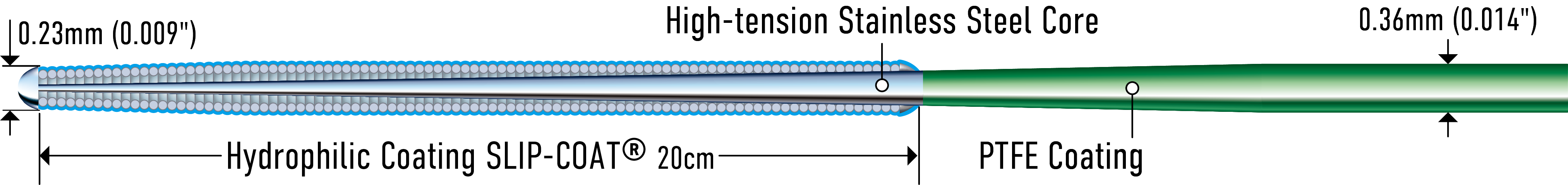

Structure
Category
Product spec comparison

Order Information

Product Name Catalog No. Outer Diameter Usable Length Coil Length Radiopaque Length Tip Shape
ASAHI Conquest Pro /Confianza Pro AGH143190 0.23/0.36mm (0.009/0.014") 190cm 20cm 20cm Straight
ASAHI Conquest Pro /Confianza Pro AGH143190P 0.23/0.36mm (0.009/0.014") 190cm 20cm 20cm Pre-shape
ASAHI Conquest Pro /Confianza Pro AGH143390 0.23/0.36mm (0.009/0.014") 300cm 20cm 20cm Straight
ASAHI Conquest Pro /Confianza Pro AGH143390P 0.23/0.36mm (0.009/0.014") 300cm 20cm 20cm Pre-shape
ASAHI Conquest Pro 12 /Confianza Pro 12 AGH143191 0.23/0.36mm (0.009/0.014") 190cm 20cm 20cm Straight
ASAHI Conquest Pro 12 /Confianza Pro 12 AGH143191P 0.23/0.36mm (0.009/0.014") 190cm 20cm 20cm Pre-shape
ASAHI Conquest Pro 12 /Confianza Pro 12 AGH143391 0.23/0.36mm (0.009/0.014") 300cm 20cm 20cm Straight
ASAHI Conquest Pro 12 /Confianza Pro 12 AGH143391P 0.23/0.36mm (0.009/0.014") 300cm 20cm 20cm Pre-shape

“ASAHI Conquest” and “Confianza Pro” are trademarks or registered trademarks of ASAHI INTECC CO., LTD.in Japan and other countries.
