Coronary
ASAHI Miracle Neo 3
Challenge with safety
■ Designed to maintain intraluminal position.
— Blunt tip design
— 0.36mm (0.014inch) tip diameter
— Uncoated tip
— Mini Pre-shape
— 3gf tip load

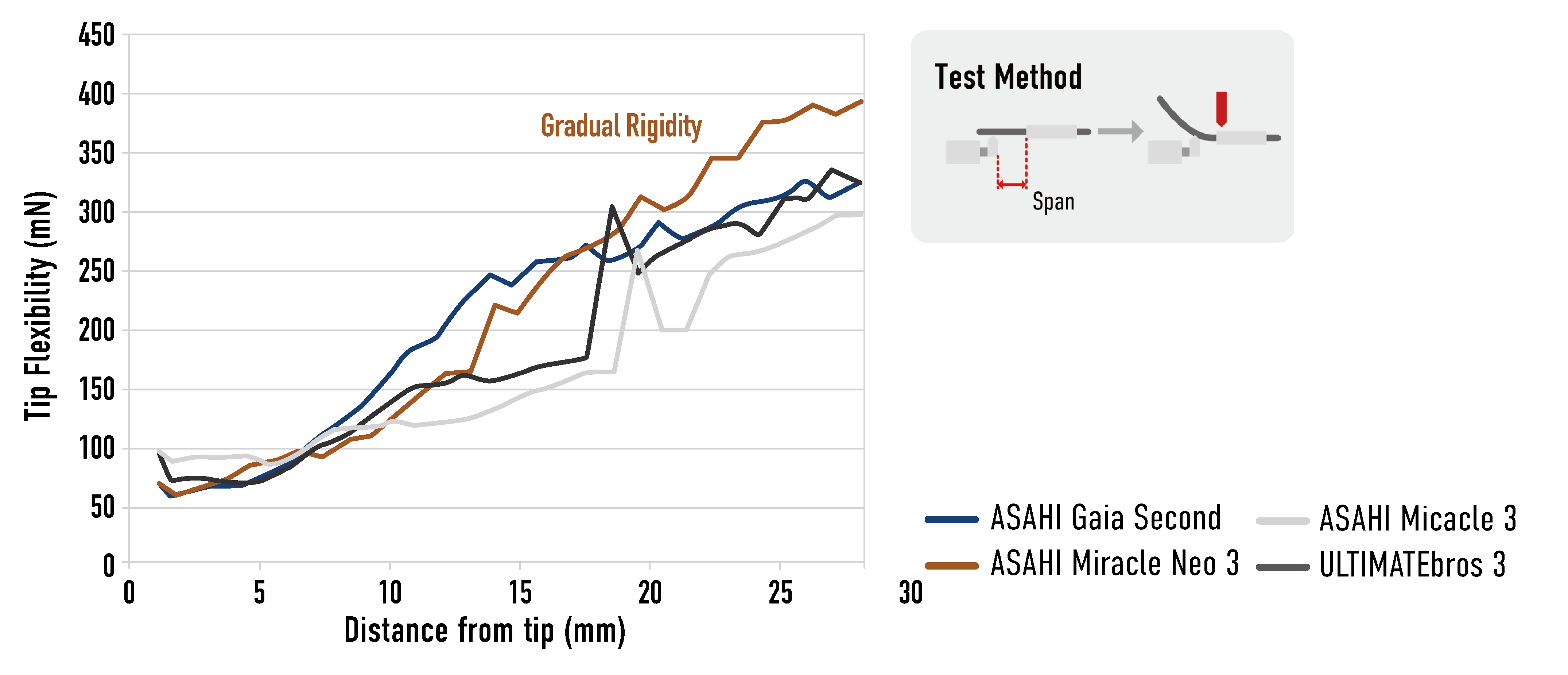

■ Tip Flexibility
Improved smooth rigidity line.

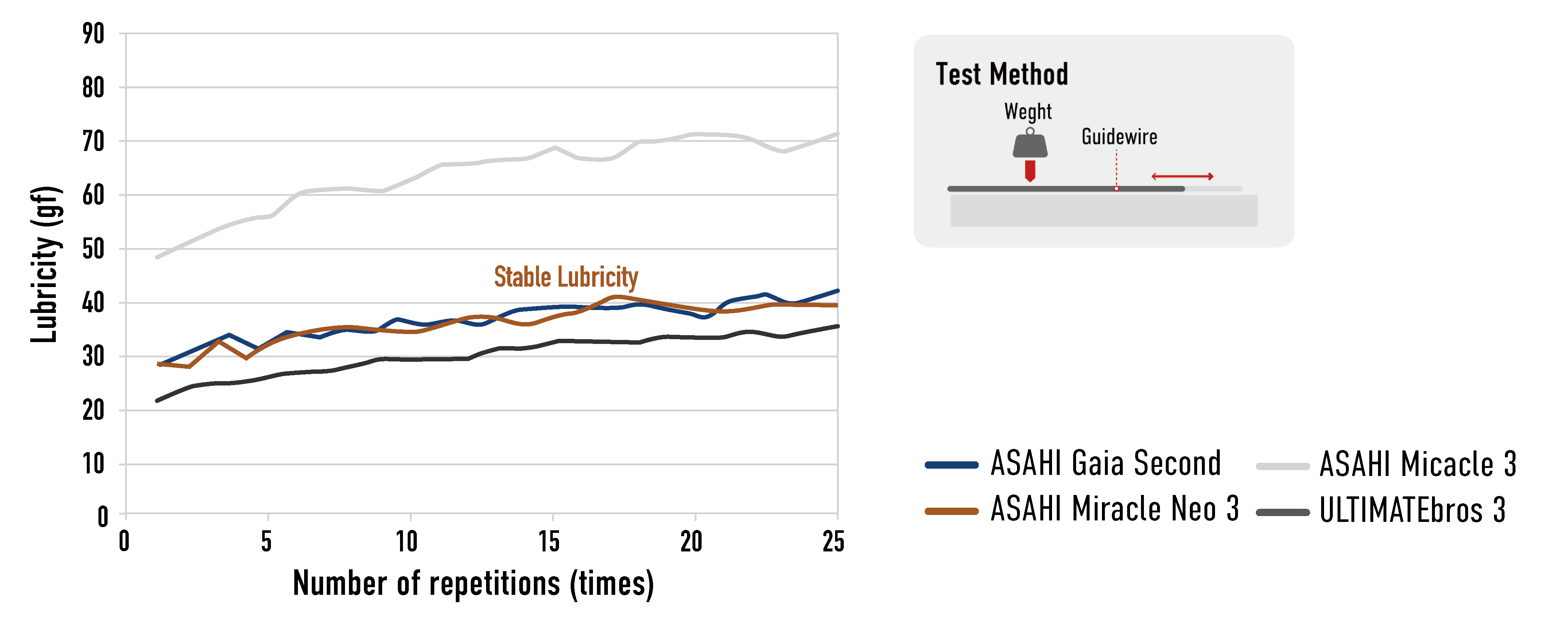

■ Lubricity
Better lubricity and coating durability.
■ Torque Response
Superior torque response without whip motion enabling excellent maneuverability.

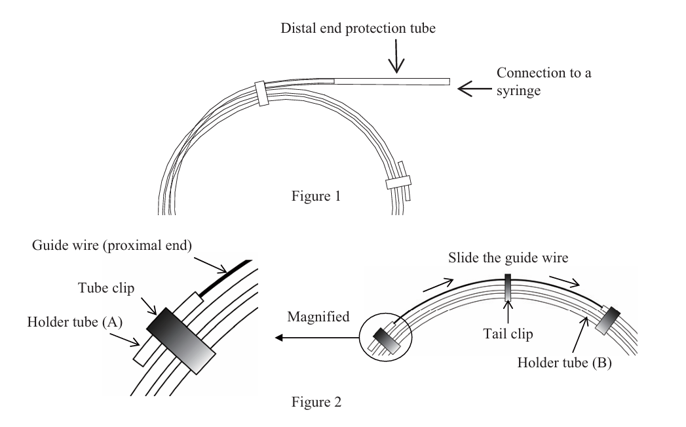

■ Precautions when removing the guide wire
*Excerpt from Instructions for Use
d) Release the guide wire from the tail clip and slide the guide wire slowly, push distal end of the guide wire through the holder tube(B).(Figure 2)
f) Gently grasp the guide wire which came out from the distal end of the distal end protection tube, at the point as close to the holder tube as possible and pull the guide wire out slowly and carefully.
■ Precautions for stent placement
*Excerpt from Instructions for Use
Do not perform stent placement using more than one guide wire or wire operation through stent strut. Otherwise, the stent may be damaged or the guide wire may break or break apart.
*All the data was obtained by company standardized test, which may differ from industry standardized tests.
*All the data does not prove that all devices have exactly the same performance with the samples used for these tests.
*The tip load values of our guide wires are the values assuming the force that the tip of the guide wire pushes the lesion on the basis of company standardized test.There are individual differences in values of actual devices.
Technology
ACT ONE
This is a multi-wire coil using our core technologies for wire drawing, wire forming, and torque.
ACT ONE optimizes the balance of torque force, torque response, durability, and rigidity in guidewires and microcatheters for high performance.
-
-
Torque Force
Product Spec
| Tip Load | 3gf |
|---|---|
| Tip Shape | Pre-shape |
| Radiopaque Length | 10.5cm |
| Coating | Hydrophilic (Uncoated Ball Tip) |
| Usable Length | 190cm / 300cm |

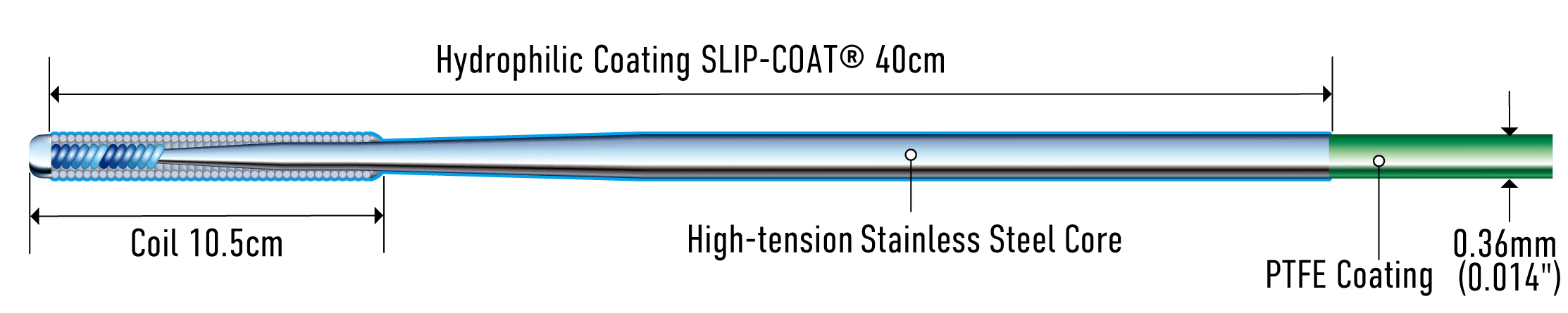

| Structure |
|
| Category |
