Coronary

ASAHI Miracle/MIRACLEbros series

Product Spec

Tip Load 3gf / 6gf / 12gf
Tip Shape Straight
Radiopaque Length 11cm
Coating Silicone
Usable Length 180cm / 300cm

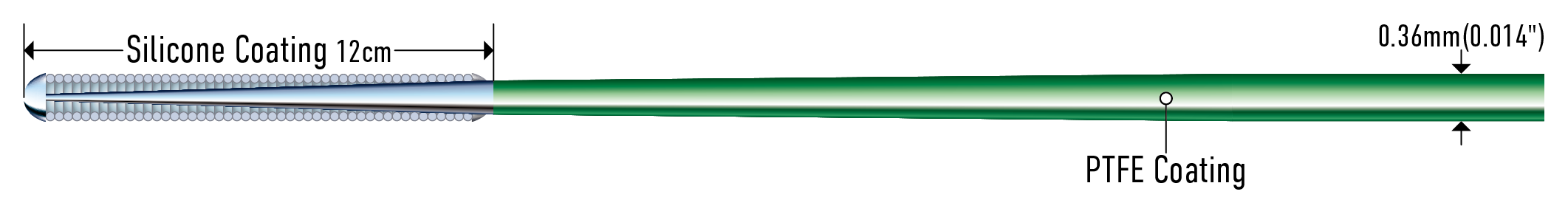

Structure
Category
Product spec comparison

Order Information

Product Name Catalog No. Tip Shape Usable Length Outer Diameter Coil Length Radiopaque Length Coating Coating Length
ASAHI Miracle 3/MIRACLEbros 3 AG14M050 Straight 180cm 0.36mm (0.014") 11cm 11cm Silicone 12cm
ASAHI Miracle 3/MIRACLEbros 3 AG14M350 Straight 300cm 0.36mm (0.014") 11cm 11cm Silicone 12cm
ASAHI Miracle 6/MIRACLEbros 6 AG14M060 Straight 180cm 0.36mm (0.014") 11cm 11cm Silicone 12cm
ASAHI Miracle 6/MIRACLEbros 6 AG14M360 Straight 300cm 0.36mm (0.014") 11cm 11cm Silicone 12cm
ASAHI Miracle 12/MIRACLEbros 12 AG14M070 Straight 180cm 0.36mm (0.014") 11cm 11cm Silicone 12cm
ASAHI Miracle 12/MIRACLEbros 12 AG14M370 Straight 300cm 0.36mm (0.014") 11cm 11cm Silicone 12cm

"ASAHI Miracle" and "MIRACLEbros" are trademarks or registered trademarks of ASAHI INTECC.
CO., LTD. in Japan and other countries.
*The tip load values of our guide wires are the values assuming the force that the tip of the guide wire pushes the lesion on the basis of company standardized test. There are individual differences in values of actual devices.
