Coronary

ASAHI RG3

Gentle to the coronary arteries. Easy to manipulate.

Safe and effective for Retrograde approach PCI

■0.26mm(0.010inch) shaft design
Prevent the vessel damage by its flexible shaft design.
■Hydrophilic Coating
170cm hydrophilic coating provides inside-catheter smooth tracking.
■Usable length
Effective for externalization with the 330cm guide wire length.

Product Spec

Tip Load 3gf
Tip Shape Straight
Radiopaque Length 3cm
Coating Hydrophilic
Usable Length 330cm

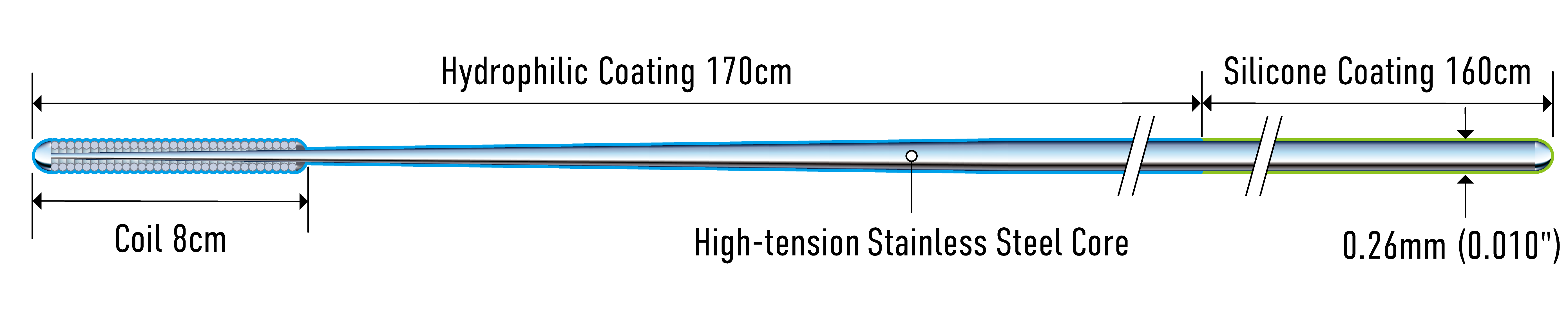

Structure
Category

Order Information

Product Name Catalog No. Tip Shape Usable Length Outer Diameter Coil Length Radiopaque Length Coating Coating Length
ASAHI RG3 AHW10S302S Straight 330cm 0.26mm (0.010") 8cm 3cm Hydrophilic 170cm

The tip load values of our guide wires are the values assuming the force that the tip of the guide wire pushes the lesion on the basis of company standardized test.
There are individual differences in values of actual devices.
