First choice frontline guide wire designed to meet a wide variety of clinical needs, maintaining ASAHI SION's performance
Ease of use allows the physician to handle the wire exactly as intened.
・There is no ACT ONE at the tip, therefore, this part is flexible, and when it gets caught or stuck on bifurcations, stress is released horizontally.
・The change in coating slightly reduces the lubricity, allowing for a safer to control wire.
・Tip load of SION blue is lower than SION, making the tip of SION blue safer.
・In complex cases where support is needed, SION blue offers better solution
・In tortuous vessels, SION blue has superiority such as when deploying long stent
Different shaft color allows for differentiation of wires when performing the kissing balloon technique, anchor technique, or other operations requiring 2 or more wires
* All the data were obtained by company standardized test, which may differ from industry standardized tests.
* All the data do not prove that all devices have exactly the same performance with the samples used for these tests.

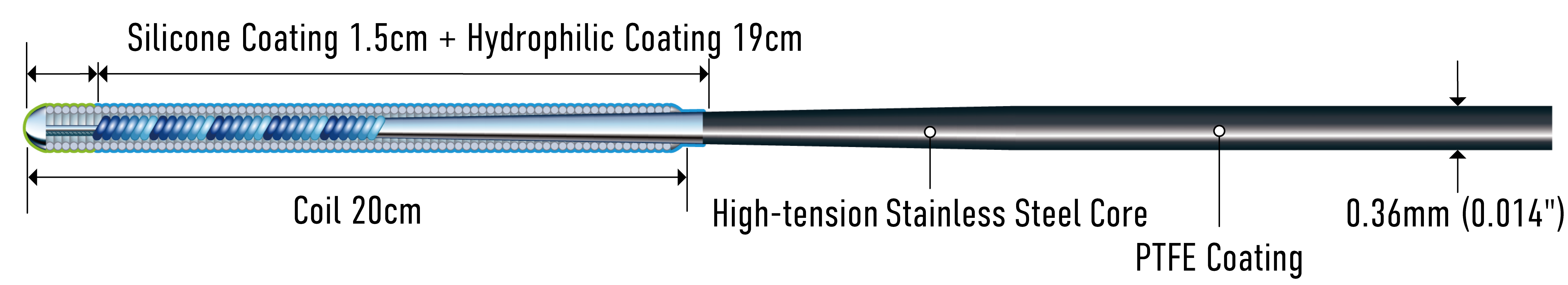

This is a multi-wire coil using our core technologies for wire drawing, wire forming, and torque.
ACT ONE optimizes the balance of torque force, torque response, durability, and rigidity in guidewires and microcatheters for high performance.
|Tip Shape||Straight / J-shape|
|Usable Length||190cm / 300cm|
|Product Name||Catalog No.||Tip Shape||Usable Length||Outer Diameter||Tip Load||Coil Length||Radiopaque Length||Coating||Coating Length|
|ASAHI SION blue||AHW14R104J||J||190cm||0.36mm (0.014")||0.5gf||20cm||3cm||Silicone＋Hydrophilic||200mm|
|ASAHI SION blue||AHW14R104S||Straight||190cm||0.36mm (0.014")||0.5gf||20cm||3cm||Silicone＋Hydrophilic||200mm|
|ASAHI SION blue||AHW14R304J||J||300cm||0.36mm (0.014")||0.5gf||20cm||3cm||Silicone＋Hydrophilic||200mm|
|ASAHI SION blue||AHW14R304S||Straight||300cm||0.36mm (0.014")||0.5gf||20cm||3cm||Silicone＋Hydrophilic||200mm|
“ASAHI”, “SION" and "ACT ONE" are are trademarks or registered trademarks of ASAHI INTECC.CO., LTD. in Japan and other countries.
Coated with SLIP-COAT® coating.
