Products shown may not be available in all countries. Indication claims may vary dependent on geography.



Very flexible guide wire for improved trackability

Creates possibilities for retrograde channel crossing

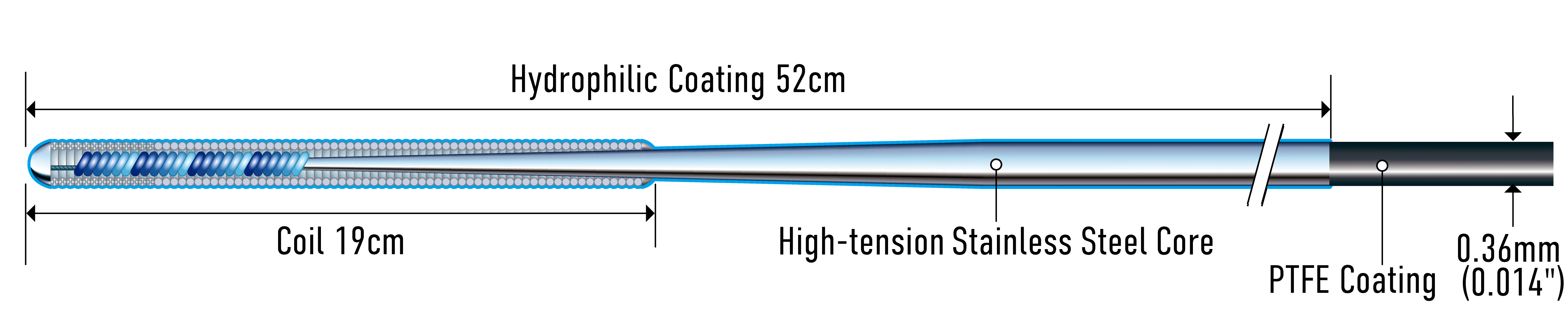

- Unique structural design
Only twist wire is connected to the tip, not the core wire.
This greatly increases tip flexibility of SUOH 03.

- 0.3gf tip load
Extremely low tip load shows how flexible the tip of SUOH 03 is.

- Unique distal rope coil segment
A single rope coil, constructed with 4 smaller-diameter wires, makes the tip more flexible than conventional spring coil.

■Torque response
ACT ONE provides control while maintaining wire flexibility.

■Shaft Support
The shaft support of ASAHI SUOH 03 is almost equal to ASAHI SION blue about 5cm from the tip.

■Mini Pre-shape
Mini Pre-shape is intended to help physicians add their own shape.

*All the data were obtained by company standardized test, which may differ from industry standardized tests.
*All the data do not prove that all devices have exactly the same performance with the samples used for these tests.


Product Spec

Tip Load 0.3gf
Tip Shape Straight / Pre-shape
Radiopaque Length 3cm
Coating Hydrophilic
Usable Length 190cm / 300cm

Order Information

Product Name Catalog No. Tip Shape Usable Length Outer Diameter Tip Load Coil Length Radiopaque Length Coating Coating Length
ASAHI SUOH 03 AHW14R013P Pre-shape 190cm 0.36mm (0.014") 0.3gf 19cm 3cm Hydrophilic 520mm
ASAHI SUOH 03 AHW14R013S Straight 190cm 0.36mm (0.014") 0.3gf 19cm 3cm Hydrophilic 520mm
ASAHI SUOH 03 AHW14R313P Pre-shape 300cm 0.36mm (0.014") 0.3gf 19cm 3cm Hydrophilic 520mm
ASAHI SUOH 03 AHW14R313S Straight 300cm 0.36mm (0.014") 0.3gf 19cm 3cm Hydrophilic 520mm

“ASAHI”, “SUOH" and "ACT ONE" are trademarks or registered trademarks of ASAHI INTECC.CO., LTD. in Japan and other countries.
Coated with SLIP-COAT® coating.
