Coronary

ASAHI ULTIMATEbros3

Long hydrophilic coating maintains maneuverability.
Fine shaping improves selectivity.

Product Spec

Tip Load 3gf
Tip Shape Straight
Radiopaque Length 11cm
Coating Hydrophilic (Uncoated Ball Tip)
Usable Length 180cm / 300cm

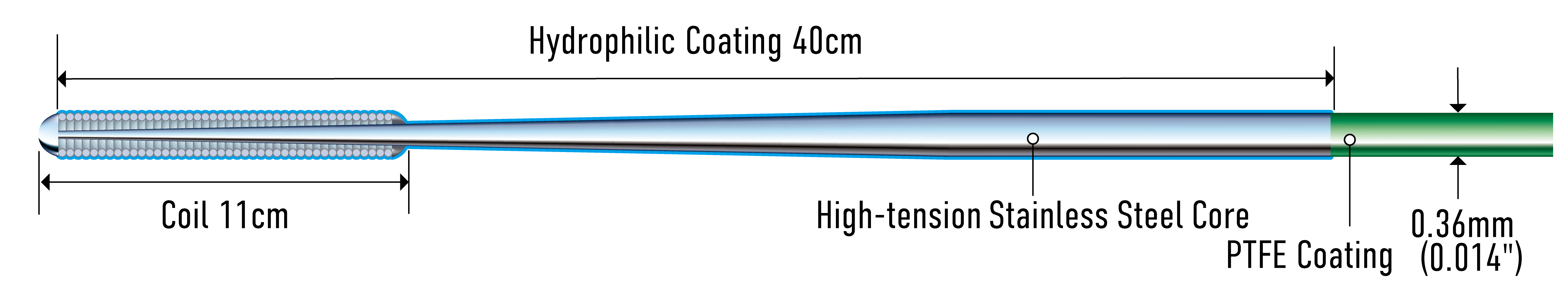

Structure
Category
Product spec comparison

Order Information

Product Name Catalog No. Tip Shape Usable Length Outer Diameter Coil Length Radiopaque Length Coating
ULTIMATEbros3 AHW14S003S Straight 180cm 0.36mm (0.014") 11cm 11cm Hydrophilic(Uncoated Ball Tip)
ULTIMATEbros3 AHW14S303S Straight 300cm 0.36mm (0.014") 11cm 11cm Hydrophilic(Uncoated Ball Tip)

“ASAHI” and “ULTIMATEbros" are trademarks or registered trademarks of ASAHI INTECC CO., LTD. in Japan and other countries.
Coated with SLIP-COAT® coating.

The tip load values of our guide wires are the values assuming the force that the tip of the guide wire pushes the lesion on the basis of company standardized test.
There are individual differences in values of actual devices.
