Peripheral(Interventional Radiology)

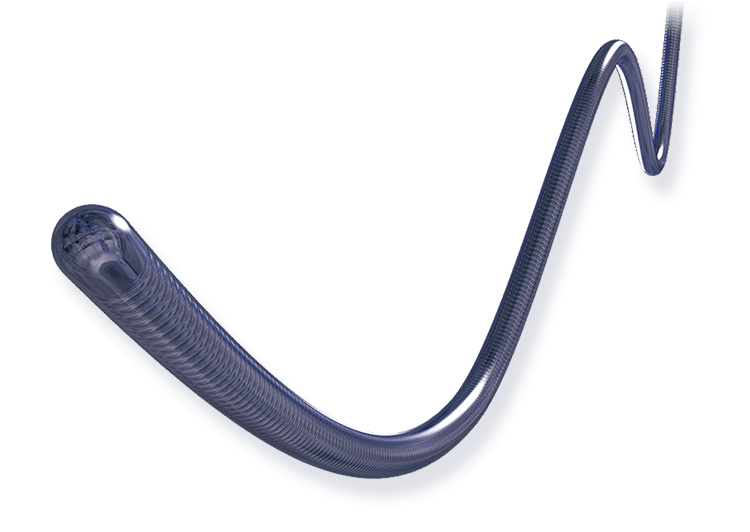

ASAHI Meister 16

Torqueable+Shapeable+Trackable

■ Torqueable
ACT ONE enhances torque response and offers good wire control.

■ Pre-shaped Tip
Pre-shaped tip and ACT ONE provide a good shape retention.

■ ACT ONE
ASAHI brand multi-wire coil (ACT ONE) improves torqueability and durability.

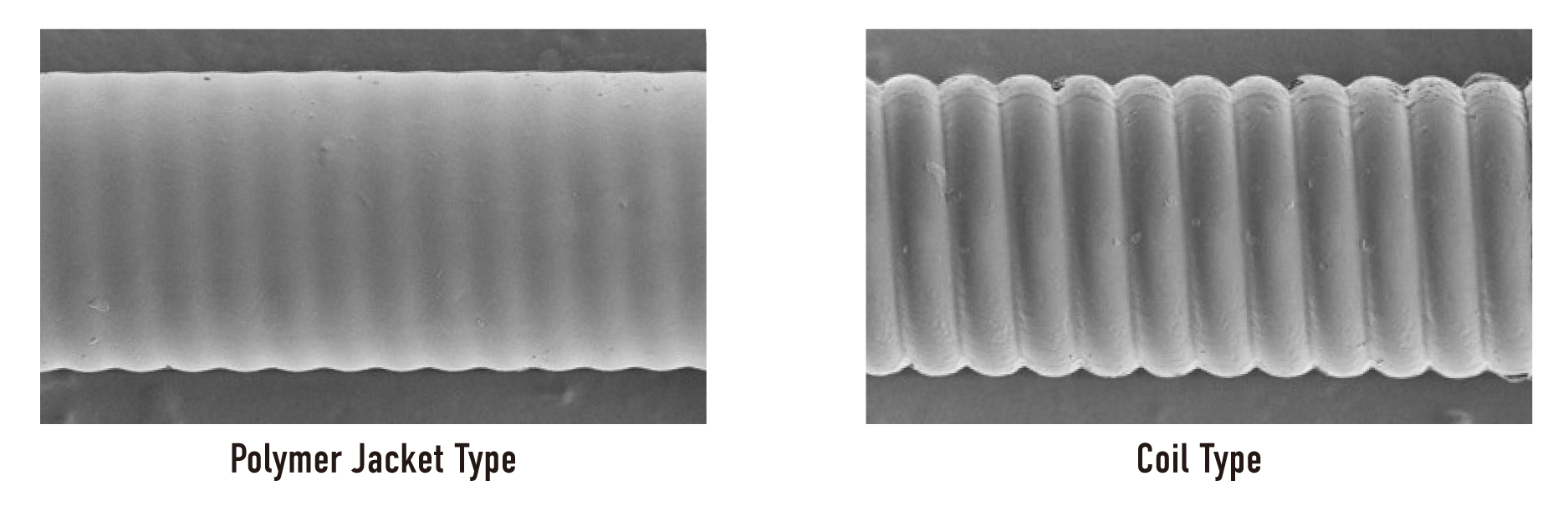

■ Lubricity
Polymer Jacket provides greater lubricity compared to spring coil guide wire.

Technology

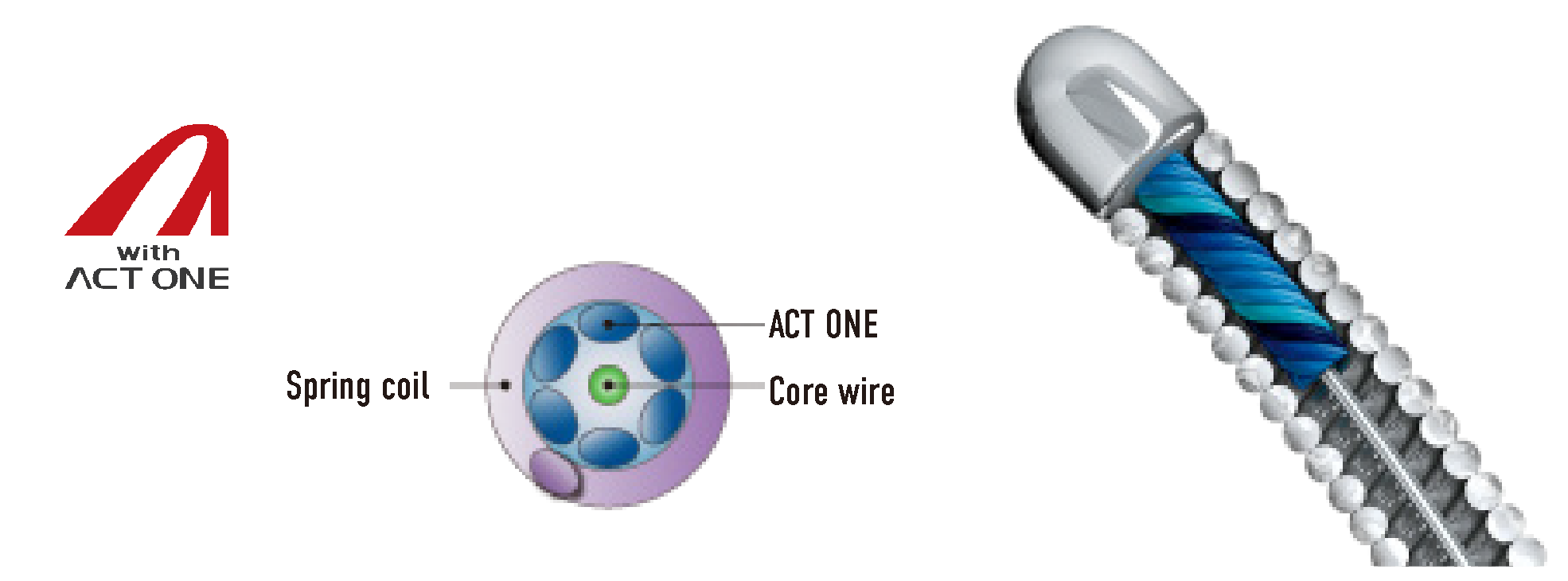

ACT ONE

This is a multi-wire coil using our core technologies for wire drawing, wire forming, and torque.

ACT ONE optimizes the balance of torque force, torque response, durability, and rigidity in guidewires and microcatheters for high performance.

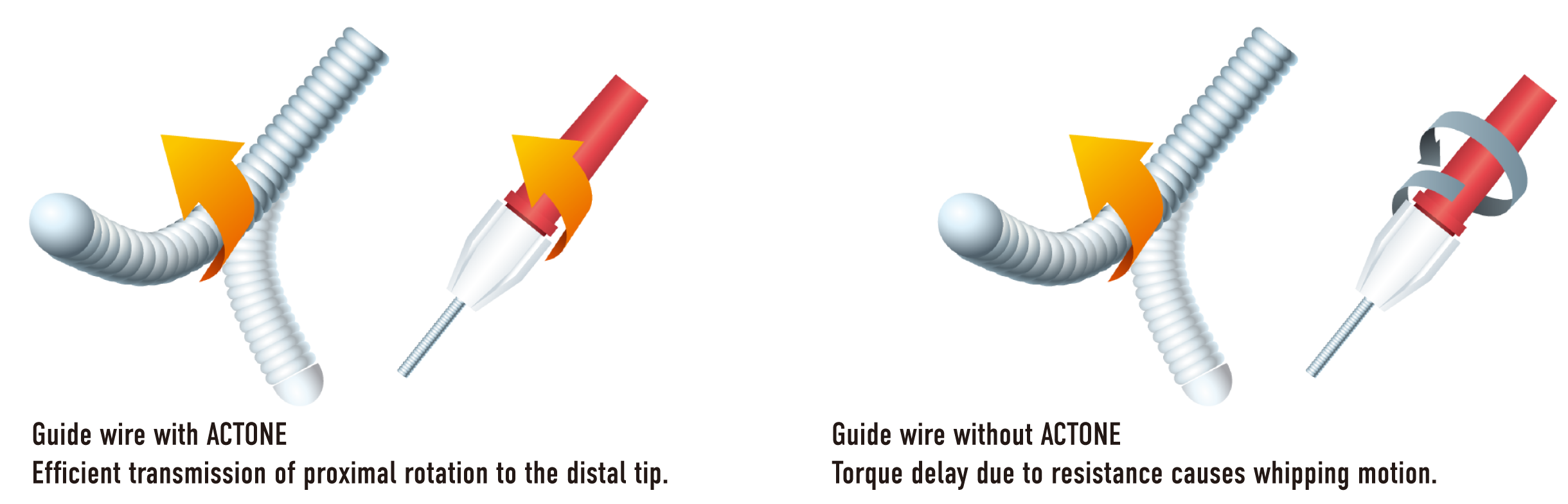

  • Torque Force
    Torque Force
Close

Product Spec

Shaft Outer Diameter 0.41mm (0.016")

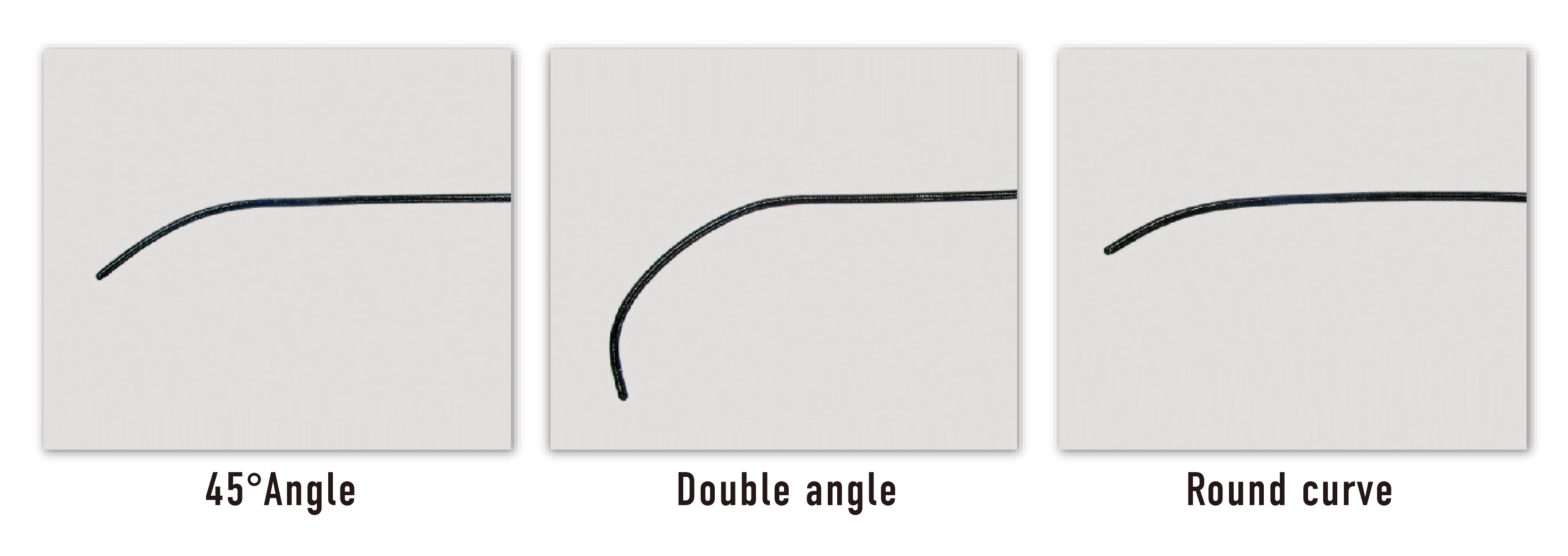

Tip Shape 45° Angle / Round curve / Double angle
Polymer Jacket Length 160cm / 175cm
Usable Length 165cm / 180cm

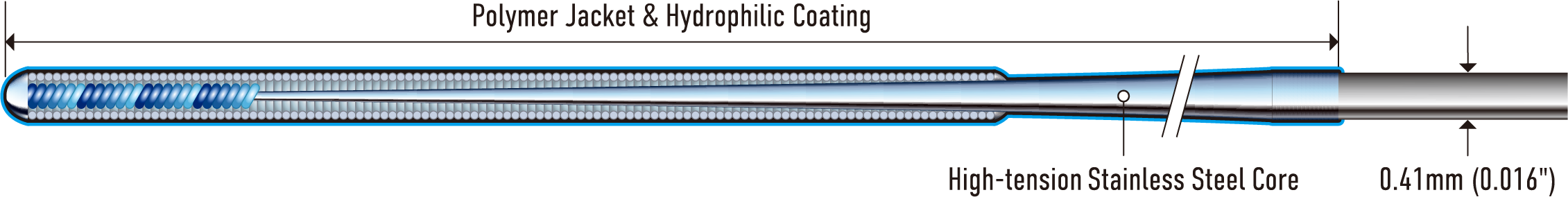

Structure
Category

Order Information

Product Name Catalog No. Usable Length Shaft (O.D) Radiopaque Length Polymer Jacket Length Hydrophilic Coating Length Tip Shape
ASAHI Meister WAMS-165-1645 165cm 0.41mm (0.016") 5cm 160cm 160cm 45° Angle
ASAHI Meister WAMS-180-1645 180cm 0.41mm (0.016") 5cm 175cm 175cm 45° Angle
ASAHI Meister WAMS-165-16WA 165cm 0.41mm (0.016") 5cm 160cm 160cm Double angle
ASAHI Meister WAMS-180-16WA 180cm 0.41mm (0.016") 5cm 175cm 175cm Double angle
ASAHI Meister WAMS-165-16ST 165cm 0.41mm (0.016") 5cm 160cm 160cm Round curve
ASAHI Meister WAMS-180-16ST 180cm 0.41mm (0.016") 5cm 175cm 175cm Round curve

“ASAHI Meister" and "ACT ONE" are trademarks or registered trademarks of ASAHI INTECC CO., LTD. in Japan and other countries.
