Peripheral(Interventional Radiology)

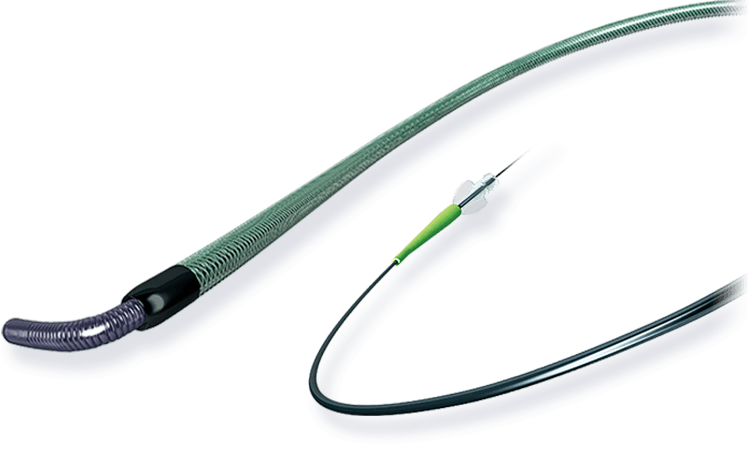

ASAHI Tellus

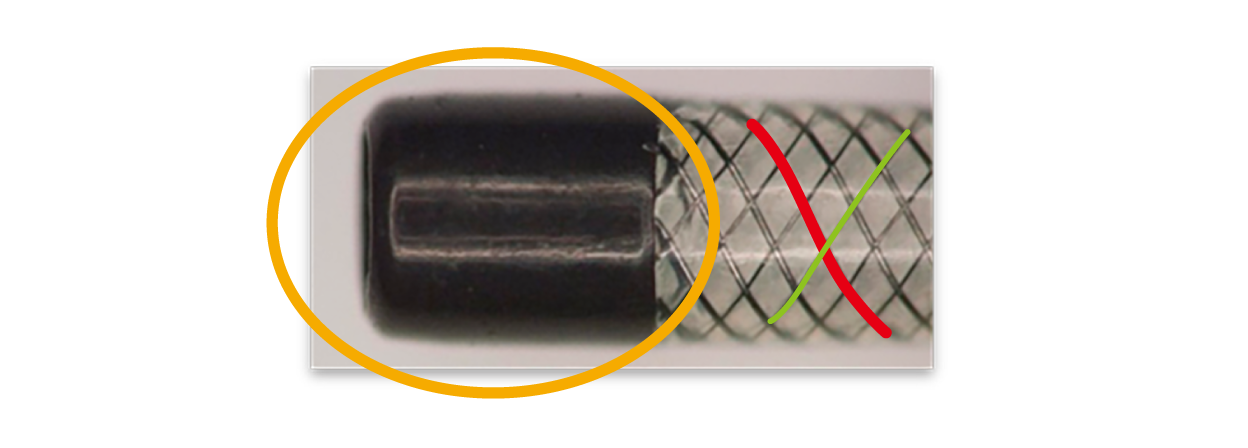

■Tip
Smooth tapered edge processing for soft and flexible tip

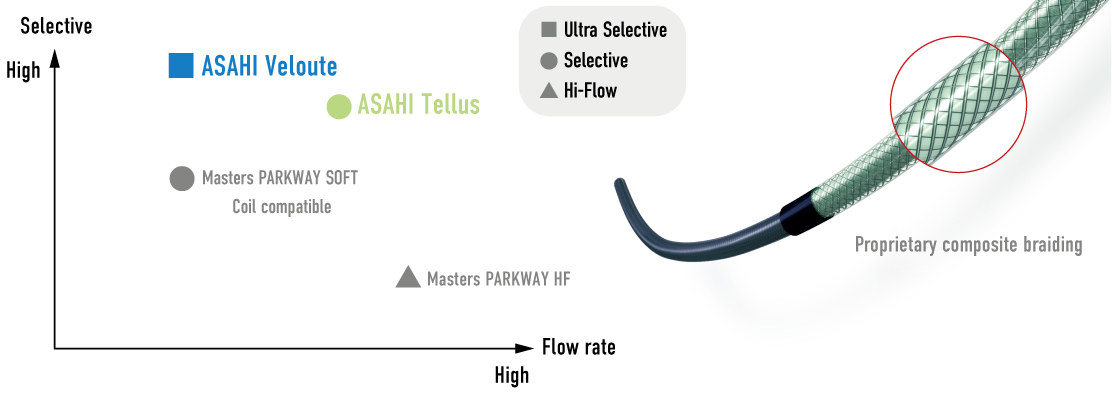

■Shaft braiding
Unique composite braid with two wires of different thickness provides resistance to kinking, enhanced shaft rigidity and a bigger lumen for delivery of a wide range of embolic material.
The benefits of using this technology:
- A highly stable tip that prevents kick-back and bouncing out of the target anatomy
- Controlled pushability to achieve a super selective MC position

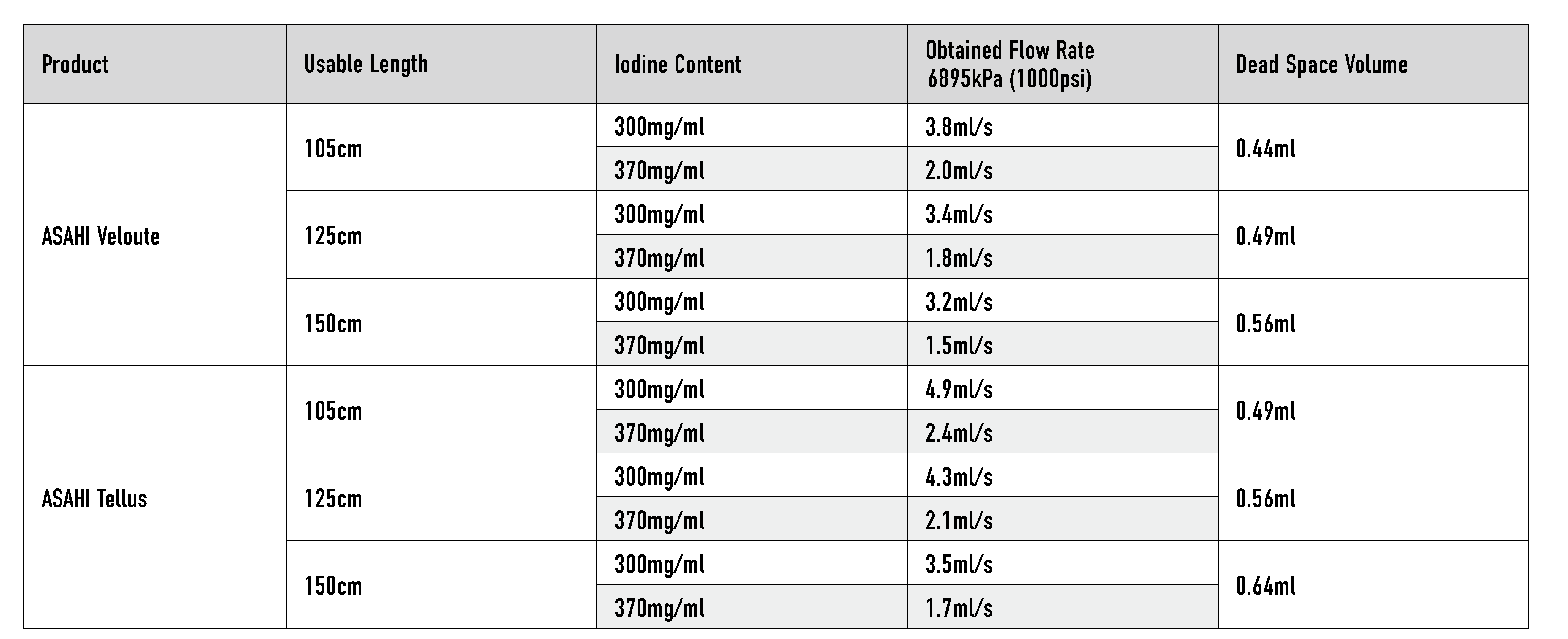

＜Setting parameter＞
Temperature of contrast medium : 37℃, Linear rise seconds : 0.3s ,
Flow rate : Iodine content 300mg/ml - 6.0ml/s, Iodine content 370mg/ml - 3.0ml/s Volume : 10ml
The flow rate in actual operation may be lower than the example result due to variations in the viscosity of the contrast medium and/or other conditions.
The dead space volume represents the value measured when the medical equipment to be used together is connected.
Product Spec
| O.D.(Distal/Proximal) | 0.63/0.94mm (1.9/2.8Fr) |
|---|---|
| I.D. (Distal/Proximal) | 0.48/0.64mm (0.019/0.025”) |
| Tip Shape | Straight / Angle |
| Max. GW | 0.41mm (0.016”) |
| Usable Length | 105cm/125cm/150cm |

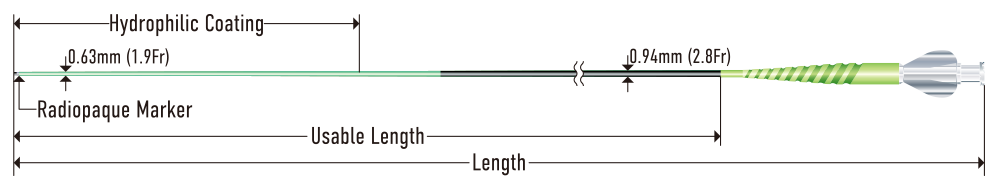

| Structure |
|
| Category |
