Peripheral(Interventional Radiology)

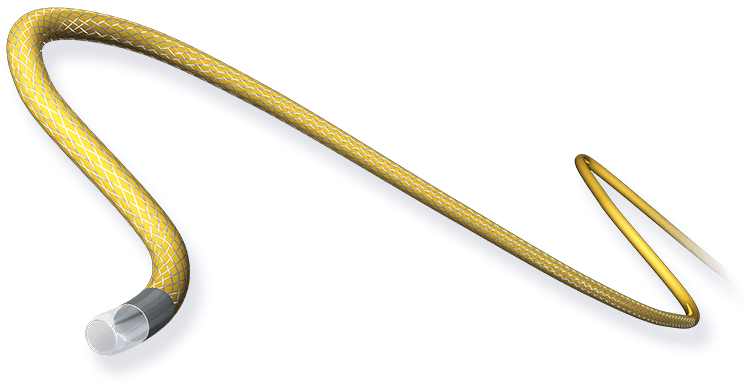

Masters PARKWAY SOFT

Product Spec

O.D. (Distal/Proximal) 0.66/0.94mm (1.98/2.8Fr)
I.D. (Distal/Proximal) 0.52/0.55mm (0.020/0.022”)
Tip Shape Straight / Angle
Max. GW 0.46mm (0.018”)
Usable Length 105cm/125cm/150cm
Structure
Category

Order Information

Product Catalog No. Usable Length O.D. (Distal/Proximal) I.D. (Distal/Proximal) Max. GW Coating Length Tip Shape Dead Space Volume ①Iodine content (300mg/ml) / Obtained flow rate 6895kPa (1000psi) ②Iodine content (370mg/ml) Obtained flow rate 6895kPa (1000psi)
Masters PARKWAY SOFT WMST105-18PWSF 105cm 0.66/0.94mm (1.98/2.8Fr) 0.52/0.55mm (0.020/0.022”) 0.46mm (0.018”) 65cm Straight 0.43ml 2.6ml/s 1.5ml/s
Masters PARKWAY SOFT WMST45A-18PWSSF 105cm 0.66/0.94mm (1.98/2.8Fr) 0.52/0.55mm (0.020/0.022”) 0.46mm (0.018”) 65cm Angle 0.43ml 2.6ml/s 1.5ml/s
Masters PARKWAY SOFT WMST125-18PWSF 125cm 0.66/0.94mm (1.98/2.8Fr) 0.52/0.55mm (0.020/0.022”) 0.46mm (0.018”) 65cm Straight 0.47ml 2.0ml/s 1.0ml/s
Masters PARKWAY SOFT WMST45A-18PWSF 125cm 0.66/0.94mm (1.98/2.8Fr) 0.52/0.55mm (0.020/0.022”) 0.46mm (0.018”) 65cm Angle 0.47ml 2.0ml/s 1.0ml/s
Masters PARKWAY SOFT WMST150-18PWSF 150cm 0.66/0.94mm (1.98/2.8Fr) 0.52/0.55mm (0.020/0.022”) 0.46mm (0.018”) 100cm Straight 0.53ml 1.6ml/s 0.8ml/s

All data above was obtained by company standardized test, which may differ from industry standardized tests.
All data above does not prove that all devices have exactly the same performance with the samples used for these tests.

The flow rate in actual operation may be lower than the example result due to variations in the viscosity of the contrast medium and/or other conditions.
The dead space volume represents the value measured when the medical equipment to be used together is connected.

※ Flow Rate
＜Setting parameter＞
Temperature of contrast medium : 37℃,
Linear rise seconds : 0.3s
Flow rate : Iodine content 300・370mg/ml - 3.0ml/s
Volume : 10ml
