Neuro

ASAHI CHIKAI black 18/18 soft tip

Reverse tapered shaft guide wire (Provide extra support distally and minimize the “ledge effect” by minimizing the gap between the OD of the guide wire and the ID of the larger microcatheter)

■Reverse tapered shaft
- Having enough for large inner diameter microcatheter and devices, softness is achieved for safety in neuro interventional procedures.
- Providing additional support 0.36mm (0.014”) proximal shaft gives tactile feedback to operators.

■Smooth delivery of microcatheters and devices
- Less friction between inner lumen of delivery devices and guide wire outer surface due to polymer jacket and hydrophilic coating.
- Less gap between the microcatheter inner diameter and guide wire outer diameter reduces ledge effect.

■Precise torque response
- ACT ONE provides great torque response in tortuous anatomy.

■30%softer tip
CHIKAI black 18 soft tip has 30% more flexibility at the tip than the conventional CHIKAI black 18.

Technology

Product Spec

Outer Diameter 0.45/0.36mm (0.018/0.014inch)
Tip Shape Round Curve
Polymer Jacket Length 150cm
Usable Length 200cm

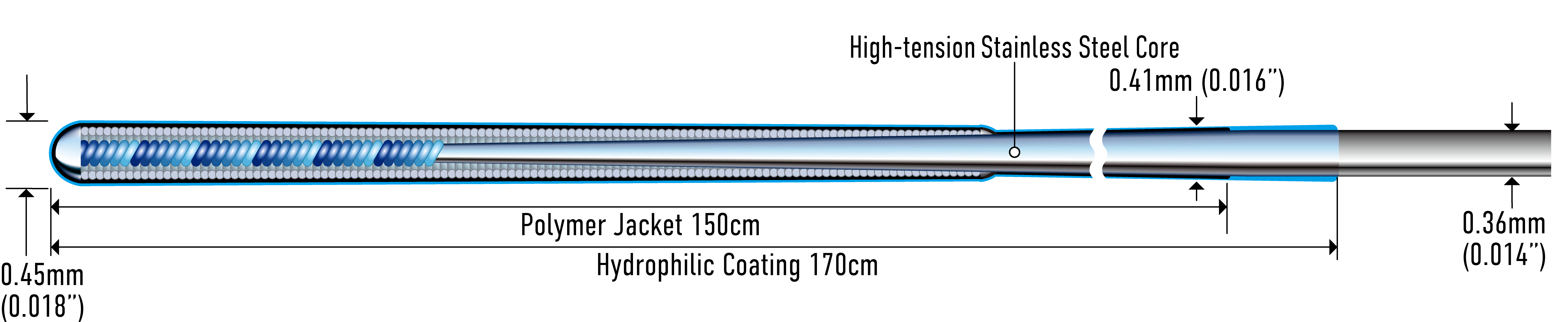

Structure
Category

Order Information

Product Name Catalog No. Usable Length Outer Diameter Coil Length Radiopaque Length Tip Shape Polymer Jacket Length Hydrophilic Coating Length
ASAHI CHIKAI black 18 Soft tip AIN-CKI-18-200-SFT 200cm 0.45/0.36mm (0.018/0.014") 34cm 5cm Round curve 150cm 170cm
ASAHI CHIKAI black 18 WAIN-CKI-18-200-BS 200cm 0.45/0.36mm (0.018/0.014") 34cm 5cm Round curve 150cm 170cm

“ASAHI”, “CHIKAI" and "ACT ONE" are trademarks or registered trademarks of ASAHI INTECC CO., LTD. in Japan and other countries.
Coated with SLIP-COAT® coating.
