Peripheral

ASAHI Gladius 0.018

Enhanced device delivery type with great shaft support and maneuverability

■Moderate tip load with good support
4.0gf tip load for 0.018 inch make possible to use for a broad range of cases from simple stenosis to occluded lesions as a soft wire.

■Tip durability
High level retention of core wire due to ACT ONE.
Used for occluded lesion and muliti-vessel.

■Mini-preshape
Tip pre-shaped in the manufacturing process with a 1mm curve.
Easier to shape than shape manually.

■Polymer jacket for lubricity
Quickly cross even calcified lesions and fibrous occlusions.

■Pushability
Easy push force transmission due to balanced support shaft design.
Suitable for tortuous vessel and cross over approach due to the smooth shaft design.

*All the data were obtained by company standardized test, which may differ from industry standardized tests.
*All the data do not prove that all devices have exactly the same performance with the samples used for these tests.

Technology

Product Spec

Tip Load 3.0gf
Tip Shape Straight / Pre-shape
Radiopaque Length 4cm
Coating Polymer+Hydrophilic
Usable Length 200cm / 235cm / 300cm

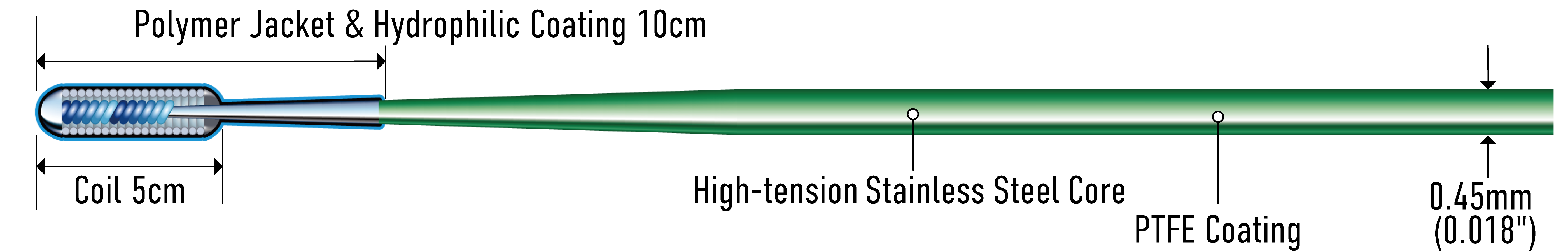

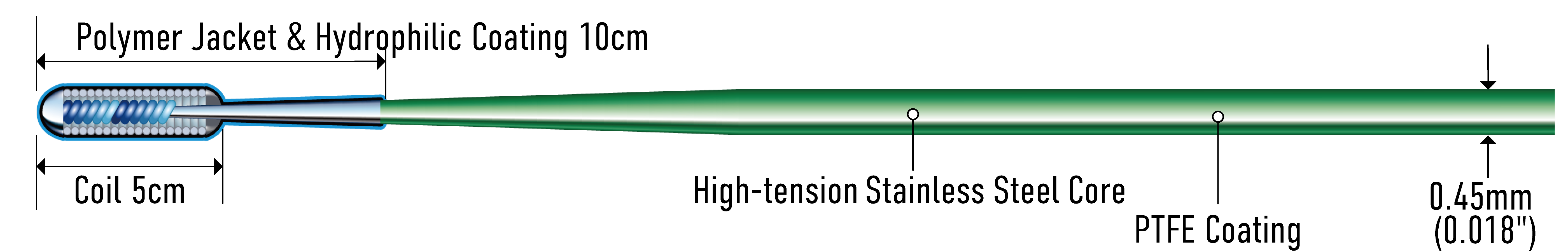

Structure
Category

Order Information

Product Name Catalog No. Tip Shape Usable Length Outer Diameter Coating Coating Length Tip Load Coil length Radiopaque Length
ASAHI Gladius 0.018 PPW18R100P Pre-shape 200cm 0.45mm (0.018") Polymer Jacket + Hydrophilic Coating 10cm 4gf 5cm 4cm
ASAHI Gladius 0.018 PPW18R100S Straight 200cm 0.45mm (0.018") Polymer Jacket + Hydrophilic Coating 10cm 4gf 5cm 4cm
ASAHI Gladius 0.018 PPW18R200P Pre-shape 235cm 0.45mm (0.018") Polymer Jacket + Hydrophilic Coating 10cm 4gf 5cm 4cm
ASAHI Gladius 0.018 PPW18R200S Straight 235cm 0.45mm (0.018") Polymer Jacket + Hydrophilic Coating 10cm 4gf 5cm 4cm
ASAHI Gladius 0.018 PPW18R300P Pre-shape 300cm 0.45mm (0.018") Polymer Jacket + Hydrophilic Coating 10cm 4gf 5cm 4cm
ASAHI Gladius 0.018 PPW18R300S Straight 300cm 0.45mm (0.018") Polymer Jacket + Hydrophilic Coating 10cm 4gf 5cm 4cm

“ASAHI Gladius" is a trademark or a registered trademark of ASAHI INTECC.CO., LTD. in Japan and other countries.
Coated with SLIP-COAT® coating.
