Coronary

ASAHI Kamui

Push the Limits of Lesion Crossability

A semi-compliant balloon with comprehensive performance to contribute to a stable procedure.

■ Gapless Low Profile Tip
- Small and flexible balloon tip engineered for minimal gap between balloon and guide wire.
- Excellent trackability around tortuosity and through stent struts.
- Durable tip to maintain performance through heavily calcified lesions.

■ Ultra Low Profile Balloon
- Ultra low profile balloon (0.64mm/0.025” ) for excellent crossability of complex lesions.
- Proprietary balloon wrapping technology reduces resistance when crossing.
- Superior balloon re-wrapping maintains crossability after multiple inflations.

■ Push Ring & Smoothlink+
- ASAHI has developed Push Ring technology to more effectively transmit the push to the balloon tip, improving pushability and crossing.
- The Smoothlink+ shaft provides a well-balanced transition from the hypo tube to the distal shaft to help effectively transmit the push force.

■ New coating technology
- Original coating technology for superior lubricity on tip and balloon, facilitating crossing of heavily stenosed lesions.

■ Compliance Chart

Product Spec

Balloon Diameter	1.25mm / 1.50mm / 2.00mm / 2.25mm / 2.50mm / 2.75mm / 3.00m / 3.25mm / 3.50mm
Balloon Length	9mm / 15mm / 20mm
Tip Entry Profile	0.43mm (0.016")
Nominal Pressire	6atm
Rated Burst Pressure	12atm for 1.25/1.50/3.50mm / 14atm for 2.0-3.25mm
Usable Length	145cm

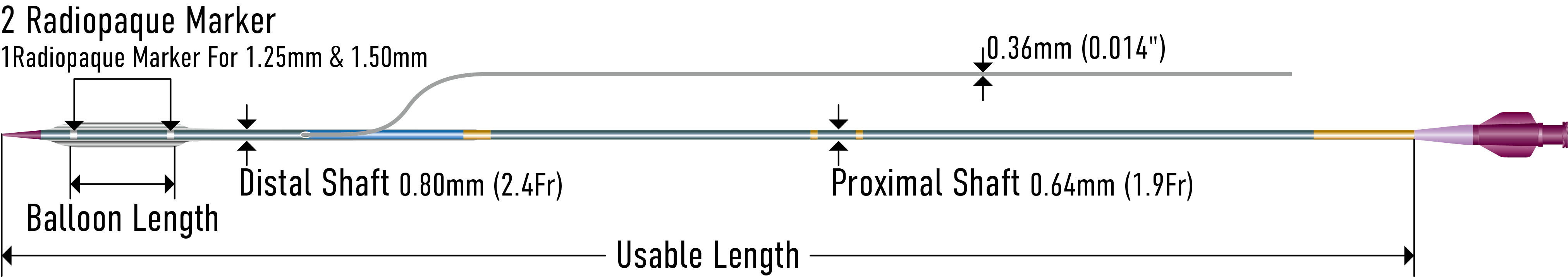

Structure
Category	#Balloon catheter #Semi-compliant

Order Information

Product Name	Catalog No.	Balloon Length	Balloon Diameter	Distal(Shaft Diameter)	Usable Length	Proximal(Shaft Diameter)	Balloon Marker	Tip Entry Profile
ASAHI Kamui	DV12509K	9mm	1.25mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	1	0.43mm (0.016")
ASAHI Kamui	DV15009K	9mm	1.5mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	1	0.43mm (0.016")
ASAHI Kamui	DV20009K	9mm	2.00mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV22509K	9mm	2.25mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV25009K	9mm	2.50mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV27509K	9mm	2.75mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV30009K	9mm	3.00mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV32509K	9mm	3.25mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV35009K	9mm	3.50mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV15015K	15mm	1.5mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	1	0.43mm (0.016")
ASAHI Kamui	DV20015K	15mm	2.00mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV22515K	15mm	2.25mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV25015K	15mm	2.50mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV27515K	15mm	2.75mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV30015K	15mm	3.00mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV32515K	15mm	3.25mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV35015K	15mm	3.50mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV20020K	20mm	2.00mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV22520K	20mm	2.25mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV25020K	20mm	2.50mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV27520K	20mm	2.75mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV30020K	20mm	3.00mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV32520K	20mm	3.25mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")
ASAHI Kamui	DV35020K	20mm	3.50mm	0.80mm (2.4Fr)	145cm	0.64mm (1.9Fr)	2	0.43mm (0.016")

"ASAHI", "Douvan" and "Kamui" are trademarks or registered trademarks of ASAHI INTECC CO., LTD. in Japan and other countries.
