Interventional Radiology

ASAHI Veloute

More selective, more effective

■Characteristics
High guide wire trackability and vessel selectivity
- developed to be compatible with ASAHI Meister 16.
■Shaft
High Maneuverability
- Proprietary composite braiding (2 wires with different thickness).

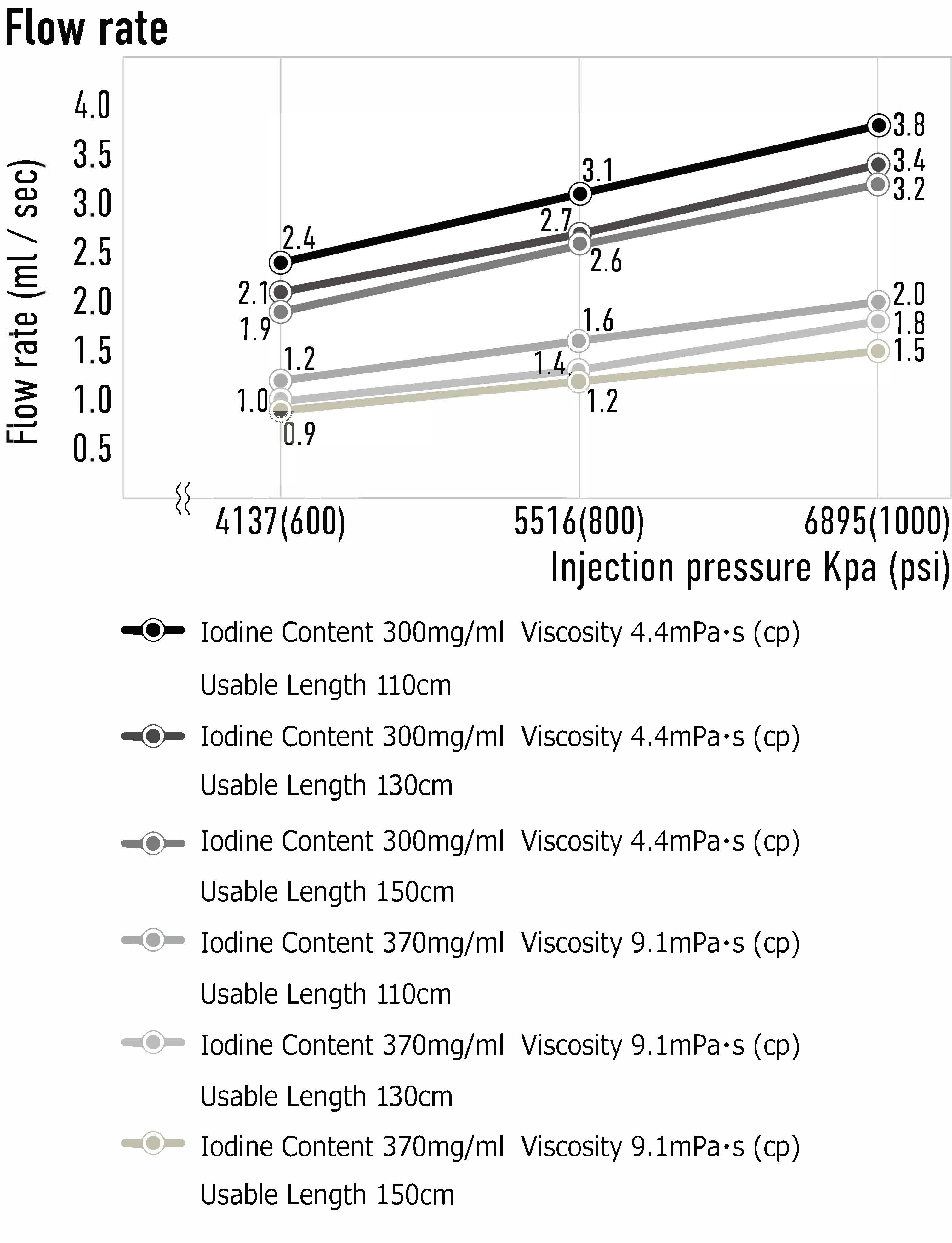

■Flow Rate Test
Better Tactile Feedback. The gradual taper design allows higher tactile feedback and easy manual contrast injection keeping a smooth flow.

  • Meister/Veloute
  • Meister S14/Veloute Ultra

* All the data were obtained by company standardized test, which may differ from industry standardized tests.
* All the data do not prove that all devices have exactly the same performance with the samples used for these tests.

Product Spec

O.D. of Distal shaft /Proximal shaft 0.58/0.94mm(1.7/2.8Fr)
I.D. of Distal shaft /Proximal shaft 0.43/0.59mm (0.017/0.023")
Tip Shape Straight / Angle / Swan Neck
Max. Guidewire 0.41mm (0.016inch)
Usable Length 110cm / 130cm / 150cm
Structure
Category

Order Information

Product Name Catalog No. Usable Length O.D. of Distal shaft /O.D. of Proximal shaft I.D. of Distal shaft /I.D. of Proximal shaft Max. Guide Wire Hydrophilic Coating Length Tip Shape Max. Pressure
ASAHI Veloute VEL110-16K 110cm 0.58/0.94mm (1.7/2.8Fr) 0.43/0.59mm (0.017/0.023") 0.41mm (0.016") 65cm Straight 6895kPa (1000psi)
ASAHI Veloute VEL110-16AK 110cm 0.58/0.94mm (1.7/2.8Fr) 0.43/0.59mm (0.017/0.023") 0.41mm (0.016") 65cm Angle 6895kPa (1000psi)
ASAHI Veloute VEL110-16SNK 110cm 0.58/0.94mm (1.7/2.8Fr) 0.43/0.59mm (0.017/0.023") 0.41mm (0.016") 65cm Swan Neck 6895kPa (1000psi)
ASAHI Veloute VEL130-16K 130cm 0.58/0.94mm (1.7/2.8Fr) 0.43/0.59mm (0.017/0.023") 0.41mm (0.016") 65cm Straight 6895kPa (1000psi)
ASAHI Veloute VEL130-16AK 130cm 0.58/0.94mm (1.7/2.8Fr) 0.43/0.59mm (0.017/0.023") 0.41mm (0.016") 65cm Angle 6895kPa (1000psi)
ASAHI Veloute VEL130-16SNK 130cm 0.58/0.94mm (1.7/2.8Fr) 0.43/0.59mm (0.017/0.023") 0.41mm (0.016") 65cm Swan Neck 6895kPa (1000psi)
ASAHI Veloute VEL150-16K 150cm 0.58/0.94mm (1.7/2.8Fr) 0.43/0.59mm (0.017/0.023") 0.41mm (0.016") 100cm Straight 6895kPa (1000psi)
ASAHI Veloute VEL150-16SNK 150cm 0.58/0.94mm (1.7/2.8Fr) 0.43/0.59mm (0.017/0.023") 0.41mm (0.016") 100cm Swan Neck 6895kPa (1000psi)

“ASAHI” and “Veloute" are trademarks or registered trademarks of ASAHI INTECC CO., LTD. in Japan and other countries.
