Neuro

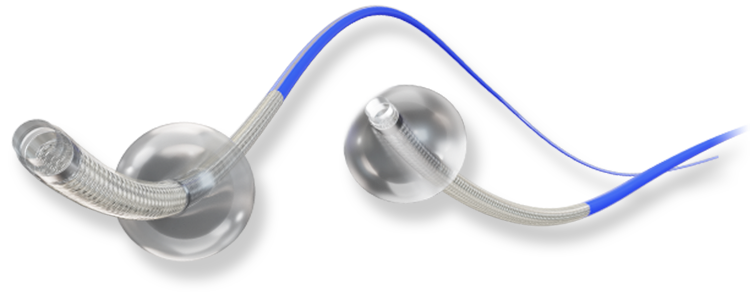

Branchor X series
To meet every physician’s preference
Branchor X has 2 different shaft designs which
work in various anatomical situations.

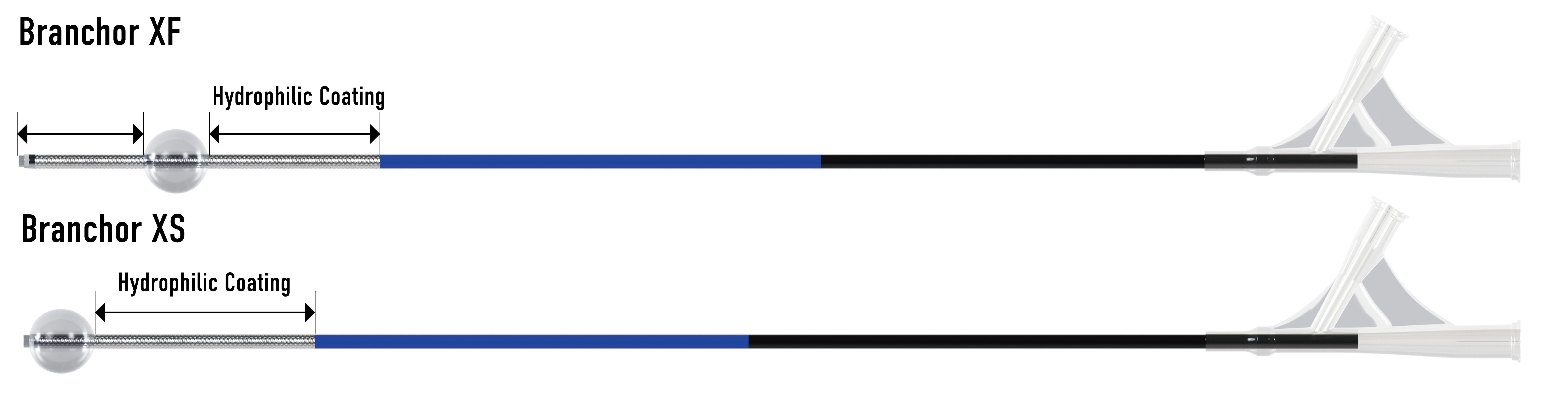

■Different Shaft Designs
[XF : Flex]

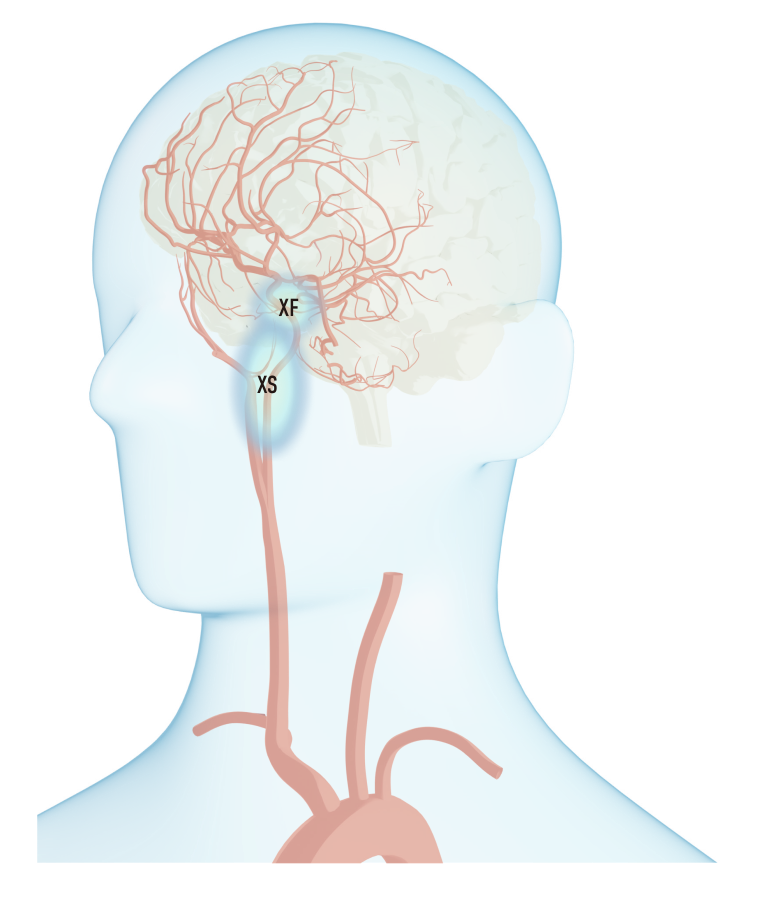

The extended flexible distal shaft enables placement in the petrous segment.
[XS : Standard]
The balanced shaft transitions well for distal cervical placement.
■Larger inflation lumen
Increasing the balloon lumen enabled smoother deflation.

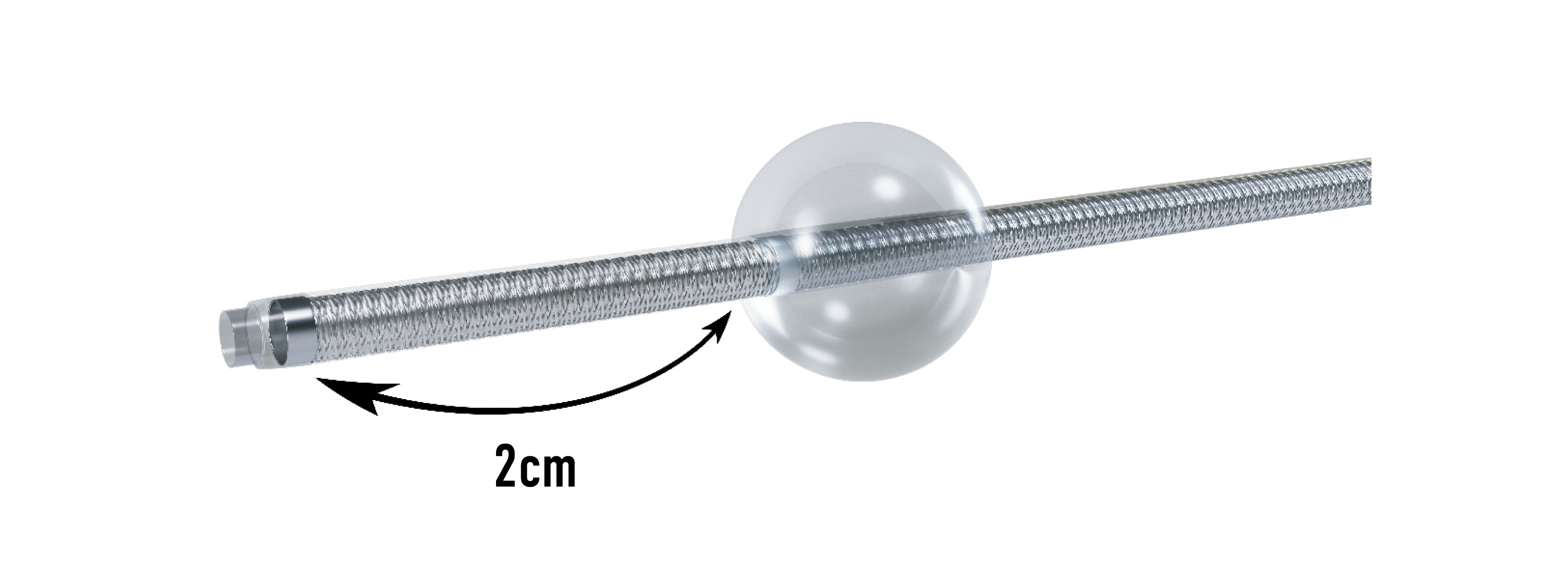

■XF with longer nose
The XF has an extended 2cm nose, which enables the tip to be located in the petrous segment and the balloon to be inflated in the cervical segment.

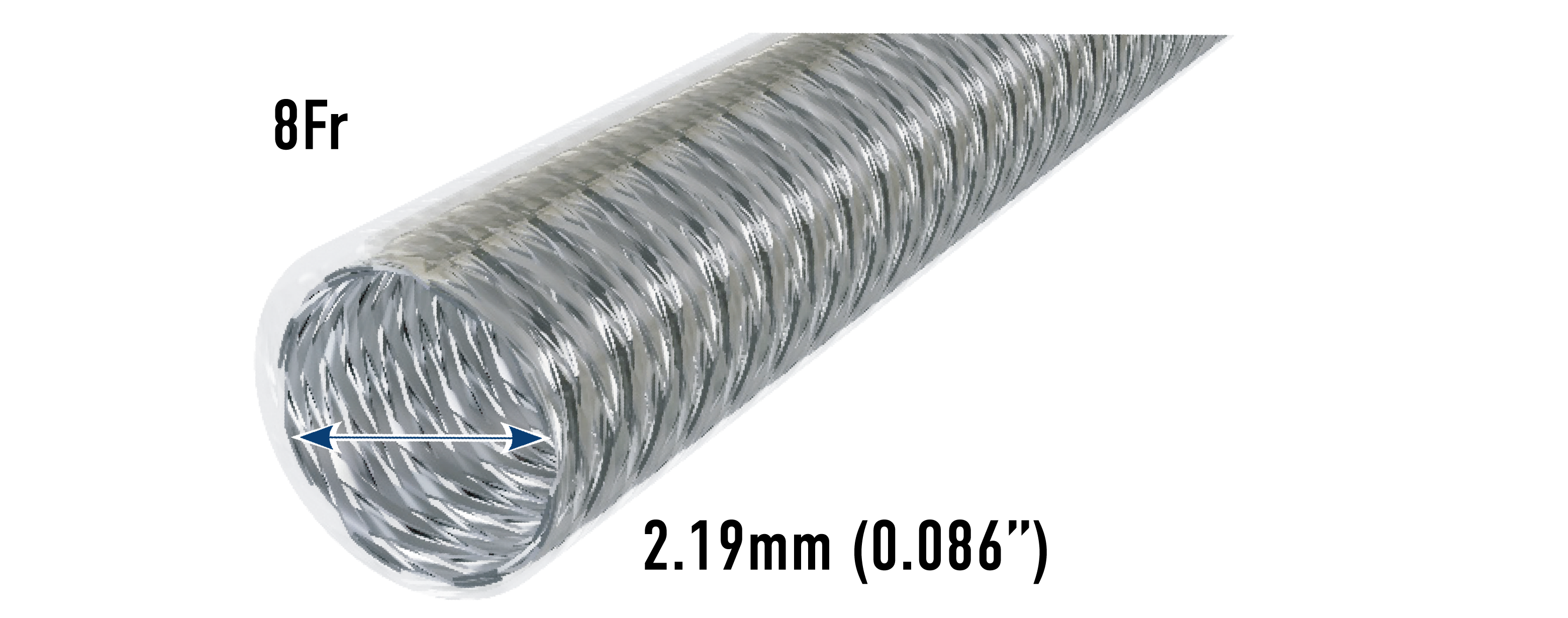

■Large I.D
By adopting a dual-lumen design, the main lumen and balloon lumen are integrated into a single structure, maximizing the inner lumen diameter.
■Compliance Chart
Do not inject more than half of the initial inflation volume once the balloon has been fully expanded to the target vessel diameter.
Product Spec
| French Size | 8Fr |
|---|---|
| I.D. | 2.19mm (0.086”) |
| O.D. | 2.70mm (8Fr) |
| Usable Length | （XF）97cｍ、（XS）90cm/95cm |
| Hydrophilic Coating Length | XF:2cm/6cm(Balloon to tip/Proximal to balloon)､XS:6cm |
| Structure |
|
| Category |
