Neuro

FUBUKI XF

Designed for distal positioning in target vasculature

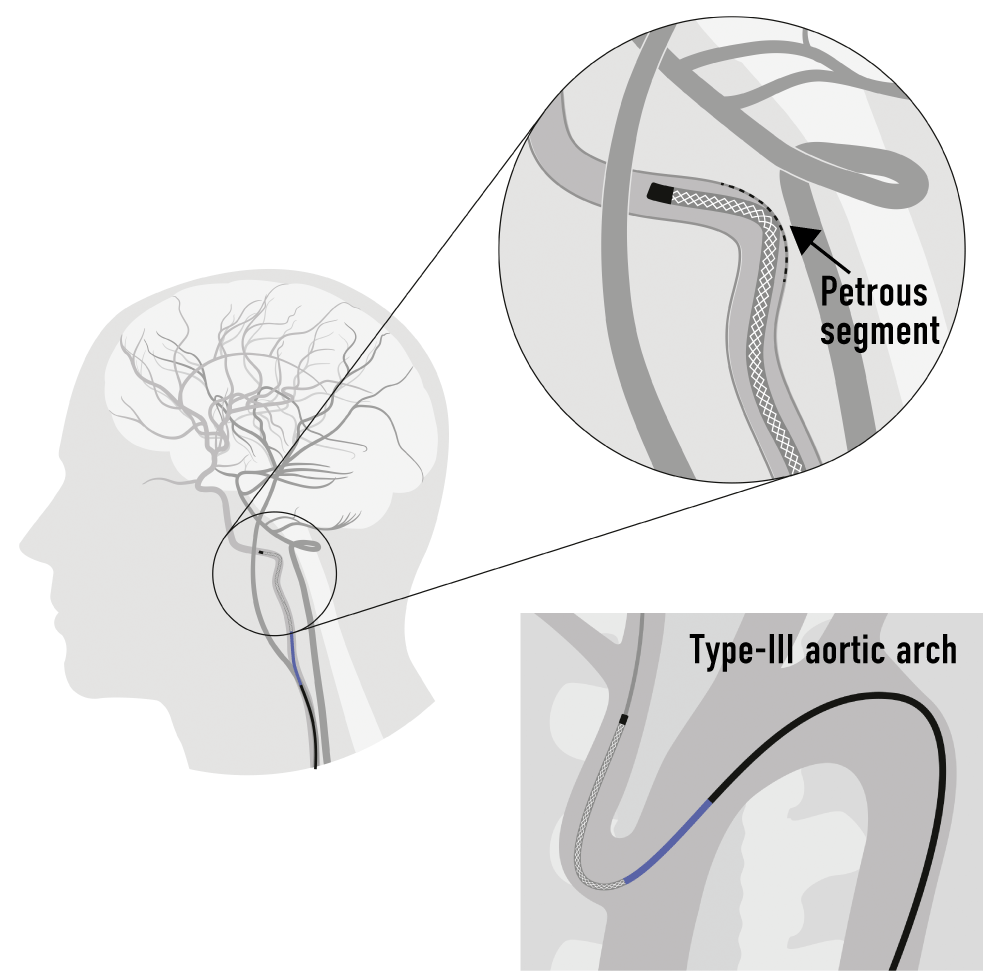

■Distal Positioning
FUBUKI XF adopts flexible distal shaft.
FUBUKI XF allows for more distal positioning compared to conventional FUBUKI.

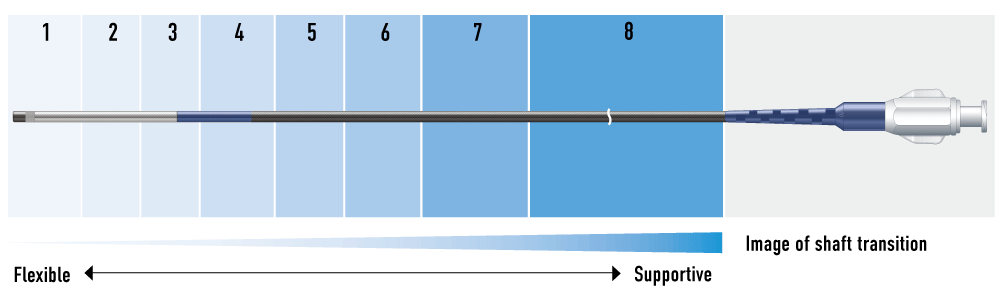

■Variable Shaft Stiffness
FUBUKI XF shaft has 8 transition zones.

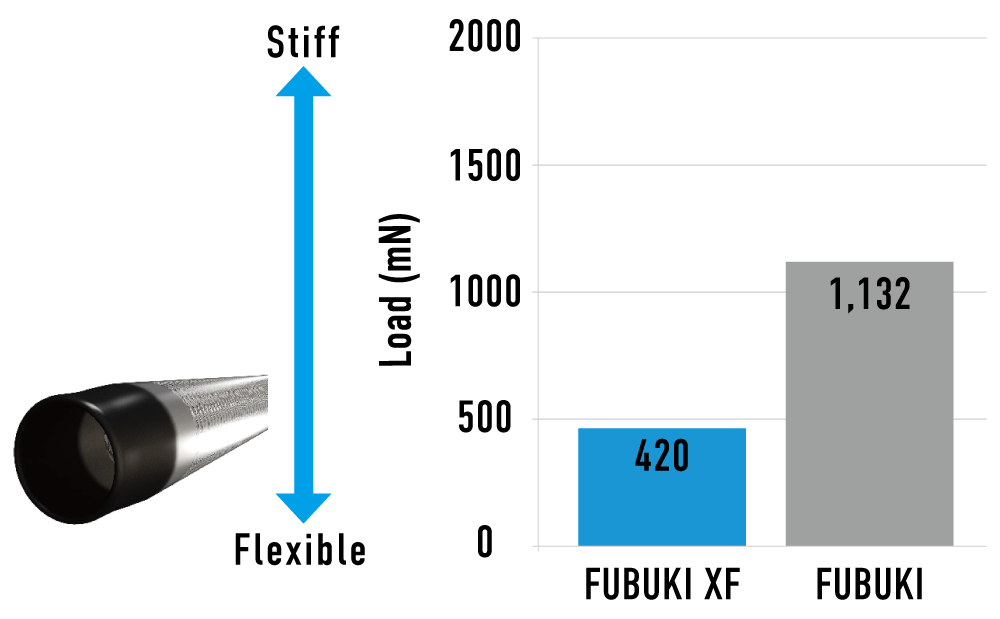

■Flexible Distal Shaft
FUBUKI XF has a rounded tip and highly flexible distal shaft.

■Seamless Connection
Reduced ledge protrusion between dilator and tip.

■Accessory（Dilator）

Product Spec

French Size 8Fr (6Fr Long Sheath)
Shape Angle / Straight
Inner Diameter 2.28mm (0.090")
Outer Diameter 2.70mm (8Fr)
Usable Length 80cm / 90cm / 100cm / 110cm
Coating Length 8cm

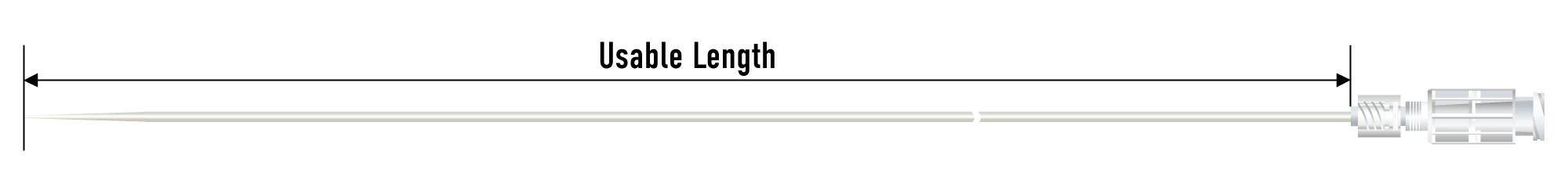

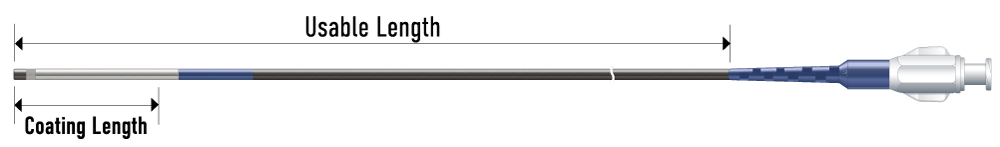

Structure
Category

Order Information

Product Name Catalog No. Tip Shape Usable Length Coating Length Inner Diameter Outer Diameter Accessory
FUBUKI XF 6Fr Long Sheath FBKX-8A80D Angle 80cm 8cm 2.28mm / 0.090" 2.70mm / 8Fr Dilator
FUBUKI XF 6Fr Long Sheath FBKX-8S80D Straight 80cm 8cm 2.28mm / 0.090" 2.70mm / 8Fr Dilator
FUBUKI XF 6Fr Long Sheath FBKX-8A90D Angle 90cm 8cm 2.28mm / 0.090" 2.70mm / 8Fr Dilator
FUBUKI XF 6Fr Long Sheath FBKX-8S90D Straight 90cm 8cm 2.28mm / 0.090" 2.70mm / 8Fr Dilator
FUBUKI XF 6Fr Long Sheath FBKX-8A100D Angle 100cm 8cm 2.28mm / 0.090" 2.70mm / 8Fr Dilator
FUBUKI XF 6Fr Long Sheath FBKX-8S100D Straight 100cm 8cm 2.28mm / 0.090" 2.70mm / 8Fr Dilator
FUBUKI XF 6Fr Long Sheath FBKX-8A110D Angle 110cm 8cm 2.28mm / 0.090" 2.70mm / 8Fr Dilator
FUBUKI XF 6Fr Long Sheath FBKX-8S110D Straight 110cm 8cm 2.28mm / 0.090" 2.70mm / 8Fr Dilator
