Coronary

ASAHI SION blue

First choice frontline guide wire designed to meet a wide variety of clinical needs, maintaining ASAHI SION's performance

Ease of use allows the physician to handle the wire exactly as intened.

・Tip load of SION blue is lower than SION, making the tip of SION blue safer.

■Device delivery
・In complex cases where support is needed, SION blue offers better solution

・In tortuous vessels, SION blue has superiority such as when deploying long stent

■Distinguishable
Different shaft color allows for differentiation of wires when performing the kissing balloon technique, anchor technique, or other operations requiring 2 or more wires

Technology

Product Spec

Tip Load 0.5gf
Tip Shape Straight / J-shape
Radiopaque Length 3cm
Coating Silicone+Hydrophilic
Usable Length 180cm / 300cm

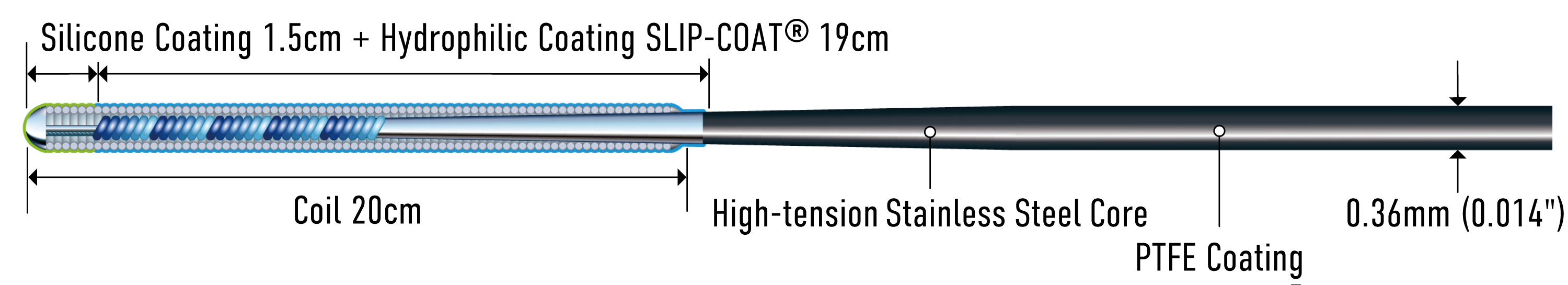

Structure
Category

Order Information

Product Name Catalog No. Tip Shape Usable Length Outer Diameter Tip Load Coil Length Radiopaque Length Coatin Coating Length
ASAHI SION blue AHW14R004S Straight 180cm 0.36mm (0.014") 0.5gf 20cm 3cm Silicone+Hydrophilic 42cm
ASAHI SION blue AHW14R304S Straight 300cm 0.36mm (0.014") 0.5gf 20cm 3cm Silicone+Hydrophilic 42cm
ASAHI SION blue AHW14R004J J 180cm 0.36mm (0.014") 0.5gf 20cm 3cm Silicone+Hydrophilic 42cm
ASAHI SION blue AHW14R304J J 300cm 0.36mm (0.014") 0.5gf 20cm 3cm Silicone+Hydrophilic 42cm

“ASAHI”, “SION" and "ACT ONE" are are trademarks or registered trademarks of ASAHI INTECC.CO., LTD. in Japan and other countries.
Coated with SLIP-COAT® coating.
