Coronary

ASAHI ULTIMATEbros3

An ideal prime solution for both PCI beginners and expert physicians.

Middle-weight, non-tapered, hydrophilic guide wire for ambiguous CTO drilling.

Product Spec

Tip Load 3gf
Tip Shape Straight / J-shape
Radiopaque Length 11cm
Coating Hydrophilic (Uncoated Ball Tip)
Usable Length 180cm / 300cm

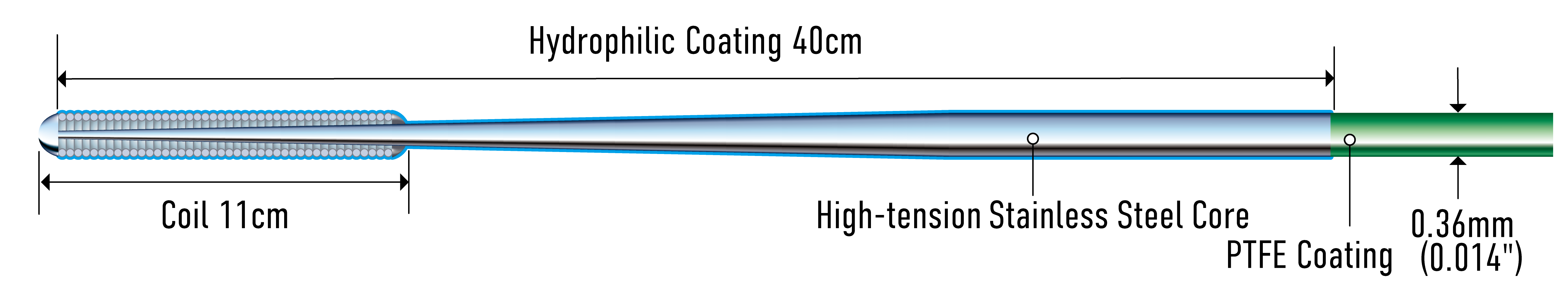

Structure
Category

Order Information

Product Name Catalog No. Tip Shape Usable Length Outer Diameter Coil Length Radiopaque Length Coating Coating Length
ULTIMATEbros3 AHW14S003S Straight 180cm 0.36mm (0.014") 11cm 11cm Hydrophilic(Uncoated Ball Tip) 40cm
ULTIMATEbros3 AHW14S303S Straight 300cm 0.36mm (0.014") 11cm 11cm Hydrophilic(Uncoated Ball Tip) 40cm
ULTIMATEbros3 AHW14S003J J 180cm 0.36mm (0.014") 11cm 11cm Hydrophilic(Uncoated Ball Tip) 40cm
ULTIMATEbros3 AHW14S303J J 300cm 0.36mm (0.014") 11cm 11cm Hydrophilic(Uncoated Ball Tip) 40cm

“ASAHI” and “ULTIMATEbros" are trademarks or registered trademarks of ASAHI INTECC CO., LTD. in Japan and other countries.
Coated with SLIP-COAT® coating.

The tip load values of our guide wires are the values assuming the force that the tip of the guide wire pushes the lesion on the basis of company standardized test.
There are individual differences in values of actual devices.
