Coronary

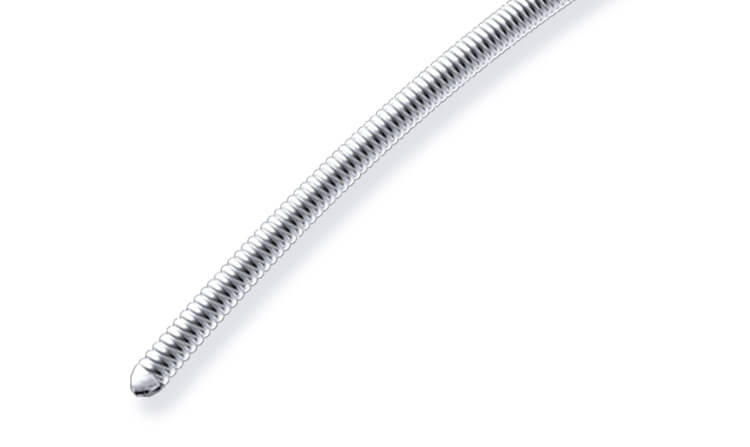

ASAHI Gaia Next
■ Micro-cone tip
Fine tip for easy engagment with the lesion while maintaining tip flexibility

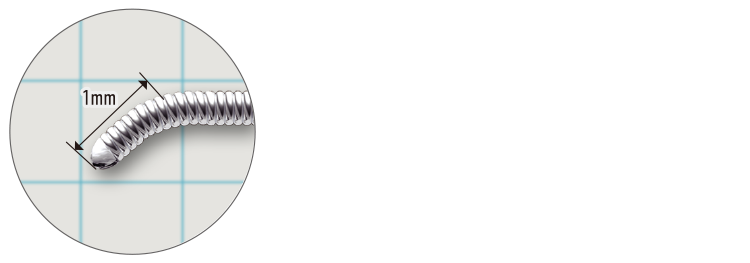

■ Pre-shape
The pre-shape during production designed for navigation and precise control
■ ACT ONE
By introducing ACT ONE, ASAHI Gaia Next brings tip durability, flexibility and torque response to a new level
■ XTRAND Coil
XTRAND Coil is a hollow outer coil made from several ropes of wire designed for:
- Flexibility for better manueverability inside severe and complex lesions
- Significantly higher tensile strength than conventional coils made using a single wire
- Mitigation of coil streching and damage to improve overall safety
There are 3 different types of tip load to be selected according to the lesion characteristics and situations.
*All the data were obtained by company standardized test, which may differ from industry standardized tests.
*All the data do not prove that all devices have exactly the same performance with the samples used for these tests.

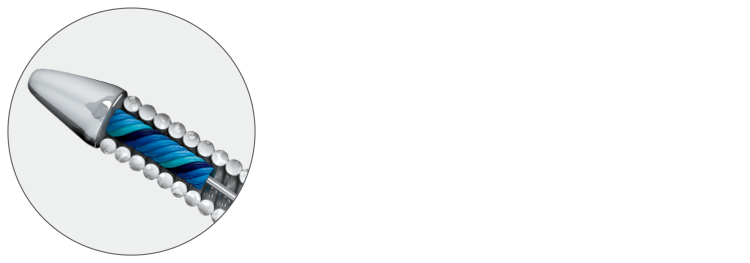

ACT ONE
This is a multi-wire coil using our core technologies for wire drawing, wire forming, and torque.
ACT ONE optimizes the balance of torque force, torque response, durability, and rigidity in guidewires and microcatheters for high performance.
-
-
Torque Force
XTRAND Coil
This is a hollow coil which is formed by using more than one rope each made up of multiple strands.
The difference from a single coil is that extension in the longitudinal axis direction is small and the strength against tension is high. This coil was developed to avoid fracture and intravascular persistence of the wire even if the tip of the guidewire is caught in endovascular tissue. Also, the XTRAND coil is characterized by its high flexibility in the transverse axis direction, high torque response, and high torque force.
-
Coil extension -
Strength against tension
Product Spec
| Tip Load | 2gf / 4gf / 6gf |
|---|---|
| Tip Shape | Pre-shape |
| Radiopaque Length | 15cm |
| Coating | Hydrophilic |
| Usable Length | 190cm / 235cm / 300cm |

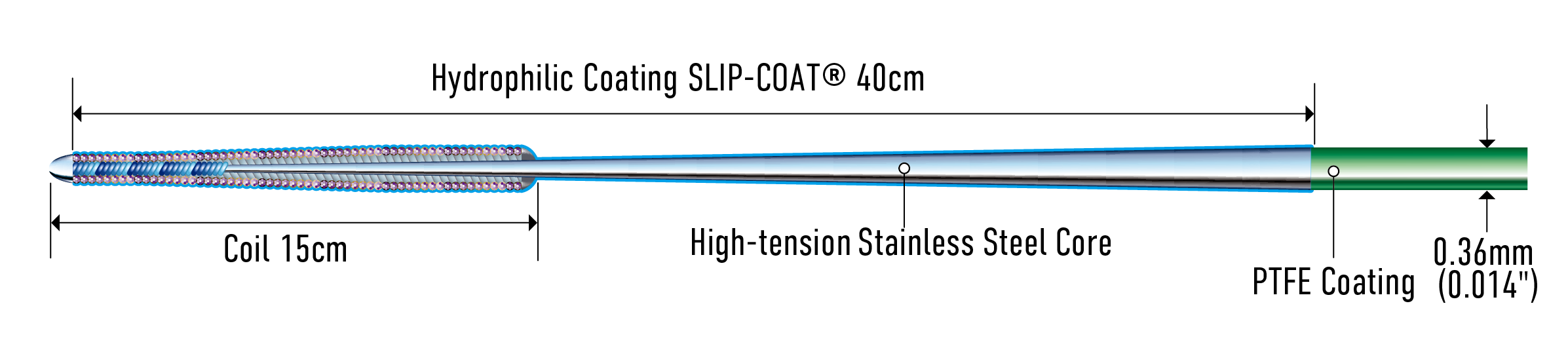

| Structure |
|
| Category |
