ASAHI SION black
Polymer jacket frontline guide wire for complex cases.
Smooth trackability in your hand

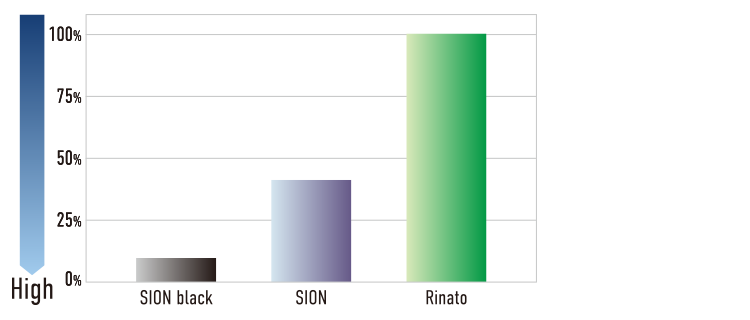

■Lubricity
Polymer jacket characteristics allow smooth lesion entry and crossing
■Tip flexibility
Compared with conventional polymer jacket wires, ASAHI SION black is flexible laterally.
This increases vessel tracking capability in tortuous lesion.

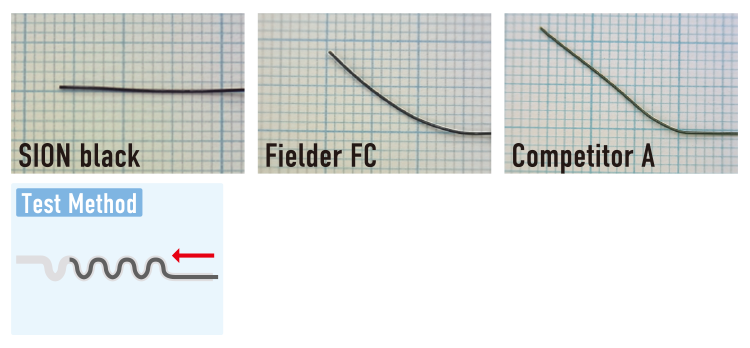

■Durability
ASAHI SION black is hardly effected by the curve.
Tip durability by ACT ONE helps maintain operability through tortuous vessels.
The above data was (All the data were) obtained by company standardized test, which may differ from industry standardized tests.
The above data (All the data) does not prove that all devices have exactly the same performance with the samples used for these tests.
Technology
ACT ONE
This is a multi-wire coil using our core technologies for wire drawing, wire forming, and torque.
ACT ONE optimizes the balance of torque force, torque response, durability, and rigidity in guidewires and microcatheters for high performance.
-
-
Torque Force
Product Spec
| Tip Load | 0.8gf |
|---|---|
| Tip Shape | Straight / Pre-shape / J-shape |
| Radiopaque Length | 3cm |
| Coating | Polymer＋Hydrophilic |
| Usable Length | 190cm / 300cm |

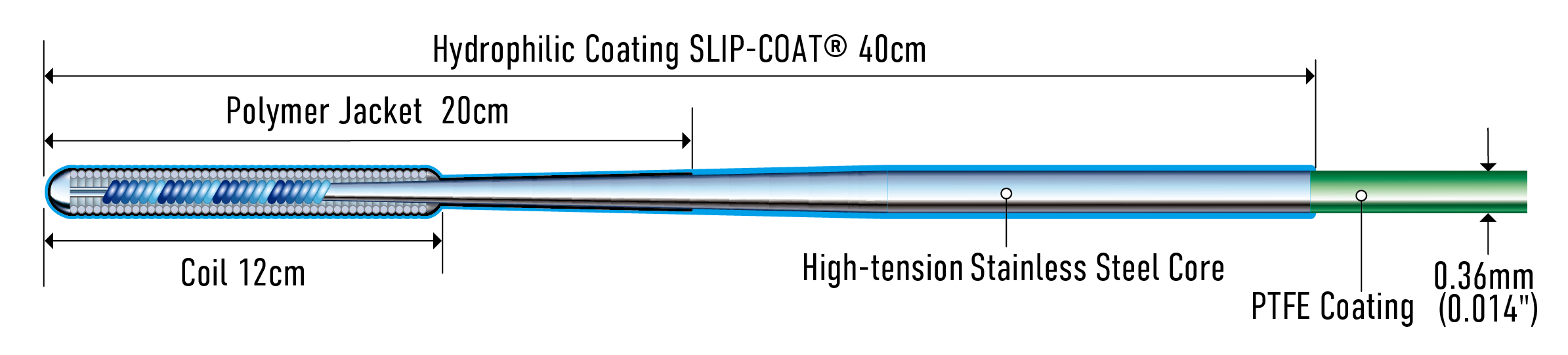

| Structure |
|
| Category |
