Interventional Radiology

ASAHI Meister

Torqueable + Shapeable + Trackable

0.41 mm (0.016 inch) guide wire for peripheral vascular interventions

■Trackable
Polymer jacket and well-designed shaft enhance tracking ability

■Torqueable
Precise torqueability with ACT ONE (One to one torque)

■Shapeable
Stainless steel core allows easy tip shaping and re-shaping compared to nitinol core

  • ■From the left hepatic artery to A4

Technology

ACT ONE

This is a multi-wire coil using our core technologies for wire drawing, wire forming, and torque.

ACT ONE optimizes the balance of torque force, torque response, durability, and rigidity in guidewires and microcatheters for high performance.

  • Torque Force
    Torque Force
Close

Product Spec

Shaft Outer Diameter 0.41mm (0.016")
Tip Shape Angled 45° / Round Curve / Angled Double
Polymer Jacket Length 130cm / 160cm / 175cm
Usable Length 135cm / 165cm / 180cm

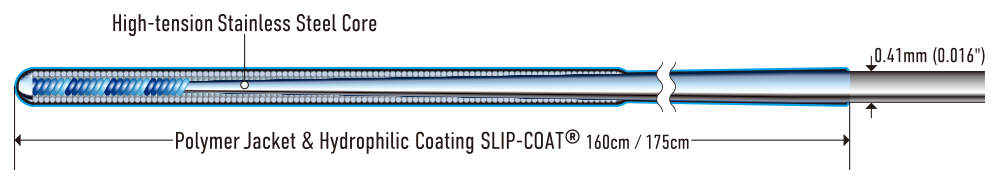

Structure
Category

Order Information

Product Name Catalog No. Usable Length Coil Length Shaft (O.D) Radiopaque Length Polymer Jacket Length Hydrophilic Coating Length Tip Shape
ASAHI Meister WAMS-135-1645 135cm 30cm 0.41mm (0.016") 5cm 130cm 130cm Angled 45°
ASAHI Meister WAMS-165-1645 165cm 30cm 0.41mm (0.016") 5cm 160cm 160cm Angled 45°
ASAHI Meister WAMS-180-1645 180cm 30cm 0.41mm (0.016") 5cm 175cm 175cm Angled 45°
ASAHI Meister WAMS-135-16WA 135cm 30cm 0.41mm (0.016") 5cm 130cm 130cm Angled double
ASAHI Meister WAMS-165-16WA 165cm 30cm 0.41mm (0.016") 5cm 160cm 160cm Angled double
ASAHI Meister WAMS-180-16WA 180cm 30cm 0.41mm (0.016") 5cm 175cm 175cm Angled double
ASAHI Meister WAMS-135-16ST 135cm 30cm 0.41mm (0.016") 5cm 130cm 130cm Round curve
ASAHI Meister WAMS-165-16ST 165cm 30cm 0.41mm (0.016") 5cm 160cm 160cm Round curve
ASAHI Meister WAMS-180-16ST 180cm 30cm 0.41mm (0.016") 5cm 175cm 175cm Round curve

“ASAHI Meister" and "ACT ONE" are trademarks or registered trademarks of ASAHI INTECC CO., LTD. in Japan and other countries.
Coated with SLIP-COAT® coating.
