Peripheral
ASAHI Gladius MG14 PV / MG14 PV ES
Advancing a Tough Peripheral Intervention
Modified distal core with micro gap creates a narrow loop
■Narrow Loop
・Micro Gap
By keeping a narrow loop when crossing the occluded lesion, GW is able to minimize resistance from the lesion.
It will be able to cross smoothly while avoiding subintimal space expansion.
■Lasting Lubricity
・Polymer jacket & Hydrophilic coating
Because of its high lubricity, ASAHI Gladius MG PV series is able to advance smoothly even in long occluded lesion.
■Mini Pre-shape
It can be shaped in a large curve accrording to the procedure, and also maintain high shape retention.
* All the data were obtained by company standardized test, which may differ from industry standardized tests.
* All the data do not prove that all devices have exactly the same performance with the samples used for these tests.
Technology
ACT ONE
This is a multi-wire coil using our core technologies for wire drawing, wire forming, and torque.
ACT ONE optimizes the balance of torque force, torque response, durability, and rigidity in guidewires and microcatheters for high performance.
-
-
Torque Force
Product Spec
| Tip Load | 3gf |
|---|---|
| Tip Shape | Straight / Pre-shape |
| Radiopaque Length | 41cm (Gladius MG14 PV) / 10cm (Gladius MG14 PV ES) |
| Coating | Polymer＋Hydrophilic |
| Usable Length | 190cm / 235cm / 300cm |

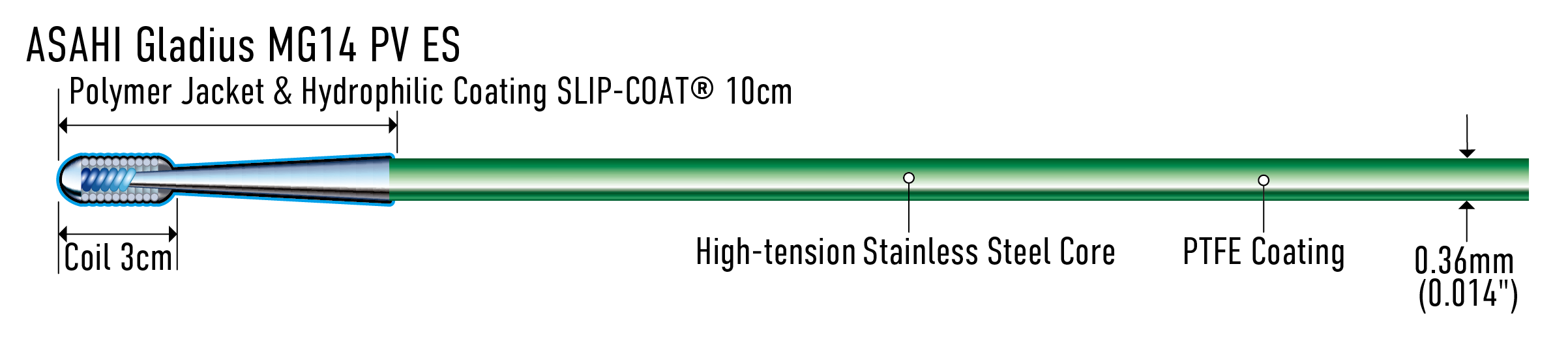

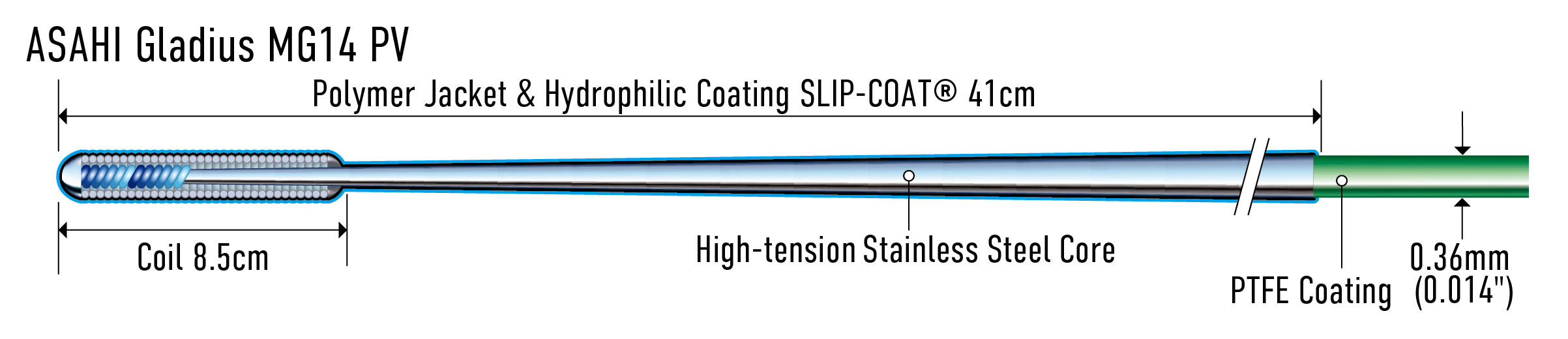

| Structure |
|
| Category |
