Peripheral

Astato XS

Tapered tip provides excellent penetration

2 variations with different tip loads for applying the wire escalation technique.

Product Spec

Tip Load 20gf / 40gf
Tip Shape Straight
Radiopaque Length 17cm /20cm
Coating Hydrophilic (Uncoated Ball Tip)
Usable Length 180cm / 200cm / 300cm

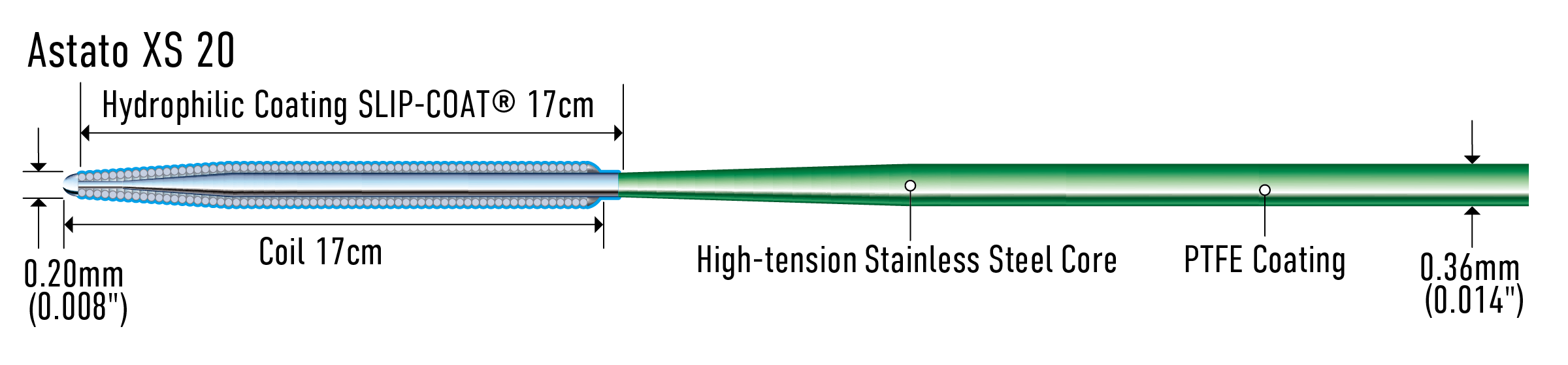

Structure
Category
Product spec comparison

Order Information

Product Name Catalog No. Tip Shape Usable Length Outer Diameter Coating Coating Length Coil Length Radiopaque Length
Astato XS 20 PAGH143092 Straight 180cm 0.20/0.36mm (0.008/0.014") Hydrophilic (Uncoated Ball Tip) 17cm 17cm 17cm
Astato XS 20 PAGH143392 Straight 300cm 0.20/0.36mm (0.008/0.014") Hydrophilic (Uncoated Ball Tip) 17cm 17cm 17cm
Astato XS 40 PAGHW143094 Straight 200cm 0.23/0.36mm (0.009/0.014") Hydrophilic (Uncoated Ball Tip) 60cm 20cm 20cm
Astato XS 40 PAGHW143394 Straight 300cm 0.23/0.36mm (0.009/0.014") Hydrophilic (Uncoated Ball Tip) 60cm 20cm 20cm

“Astato" is a trademark or a registered trademark of ASAHI INTECC CO., LTD. in Japan and other countries.
Coated with SLIP-COAT® coating.

The tip load values of our guide wires are the values assuming the force that the tip of the guide wire pushes the lesion on the basis of company standardized test.
There are individual differences in values of actual devices.
