Coronarias

ASAHI Gaia Next

■ Bobina XTRAND
Si bien ASAHI Gaia Next permite flexibilidad para el control de deflexión, su característica contra daños original aumenta la durabilidad cuando queda atrapado.

- Menor riesgo de daños en el alambre guía
Evita la rotura del alambre guía incluso en caso de atrapamiento.

- Mayor poder anti atrapamiento
Mejora la maniobrabilidad para evitar el atrapamiento del alambre guía.

■ Rendimiento mejorado de la serie ASAHI Gaia.
Al utilizar la bobina XTRAND, la serie ASAHI Gaia Next muestra una mayor fuerza de torsión. Esto permite una manipulación más precisa de la punta.

*All the data were obtained by company standardized test, which may differ from industry standardized tests.
*All the data do not prove that all devices have exactly the same performance with the samples used for these tests.

especificaciones del producto

Tip Load 2gf / 4gf / 6gf
Tip Shape Pre-shape
Radiopaque Length 15cm
Coating Hydrophilic
Usable Length 190cm / 235cm / 300cm

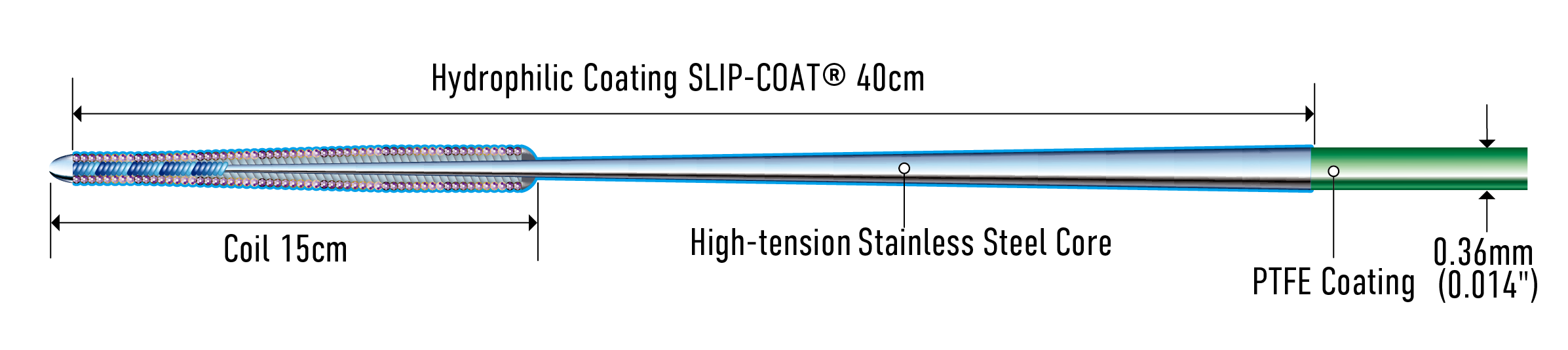

Structure
Category

Información del pedido

Product Name Catalog No. Tip Shape Usable Length Outer Diameter Coil Length Radiopaque Length Coating Coating Length
ASAHI Gaia Next 1 AH14R019P Pre-shape 190cm 0.27/0.36mm (0.011/0.014") 15cm 15cm Hydrophilic 40cm
ASAHI Gaia Next 1 AH14R219P Pre-shape 235cm 0.27/0.36mm (0.011/0.014") 15cm 15cm Hydrophilic 40cm
ASAHI Gaia Next 1 AH14R319P Pre-shape 300cm 0.27/0.36mm (0.011/0.014") 15cm 15cm Hydrophilic 40cm
ASAHI Gaia Next 2 AH14R020P Pre-shape 190cm 0.30/0.36mm (0.012/0.014") 15cm 15cm Hydrophilic 40cm
ASAHI Gaia Next 2 AH14R220P Pre-shape 235cm 0.30/0.36mm (0.012/0.014") 15cm 15cm Hydrophilic 40cm
ASAHI Gaia Next 2 AH14R320P Pre-shape 300cm 0.30/0.36mm (0.012/0.014") 15cm 15cm Hydrophilic 40cm
ASAHI Gaia Next 3 AH14R021P Pre-shape 190cm 0.30/0.36mm (0.012/0.014") 15cm 15cm Hydrophilic 40cm
ASAHI Gaia Next 3 AH14R221P Pre-shape 235cm 0.30/0.36mm (0.012/0.014") 15cm 15cm Hydrophilic 40cm
ASAHI Gaia Next 3 AH14R321P Pre-shape 300cm 0.30/0.36mm (0.012/0.014") 15cm 15cm Hydrophilic 40cm

ASAHI Gaia Next", "ACT ONE" and “XTRAND" are trademarks or registered trademarks of ASAHI INTECC CO., LTD. in Japan and other countries.
Coated with SLIP-COAT® coating.

The tip load values of our guide wires are the values assuming the force that the tip of the guide wire pushes the lesion on the basis of company standardized test.
There are individual differences in values of actual devices.
